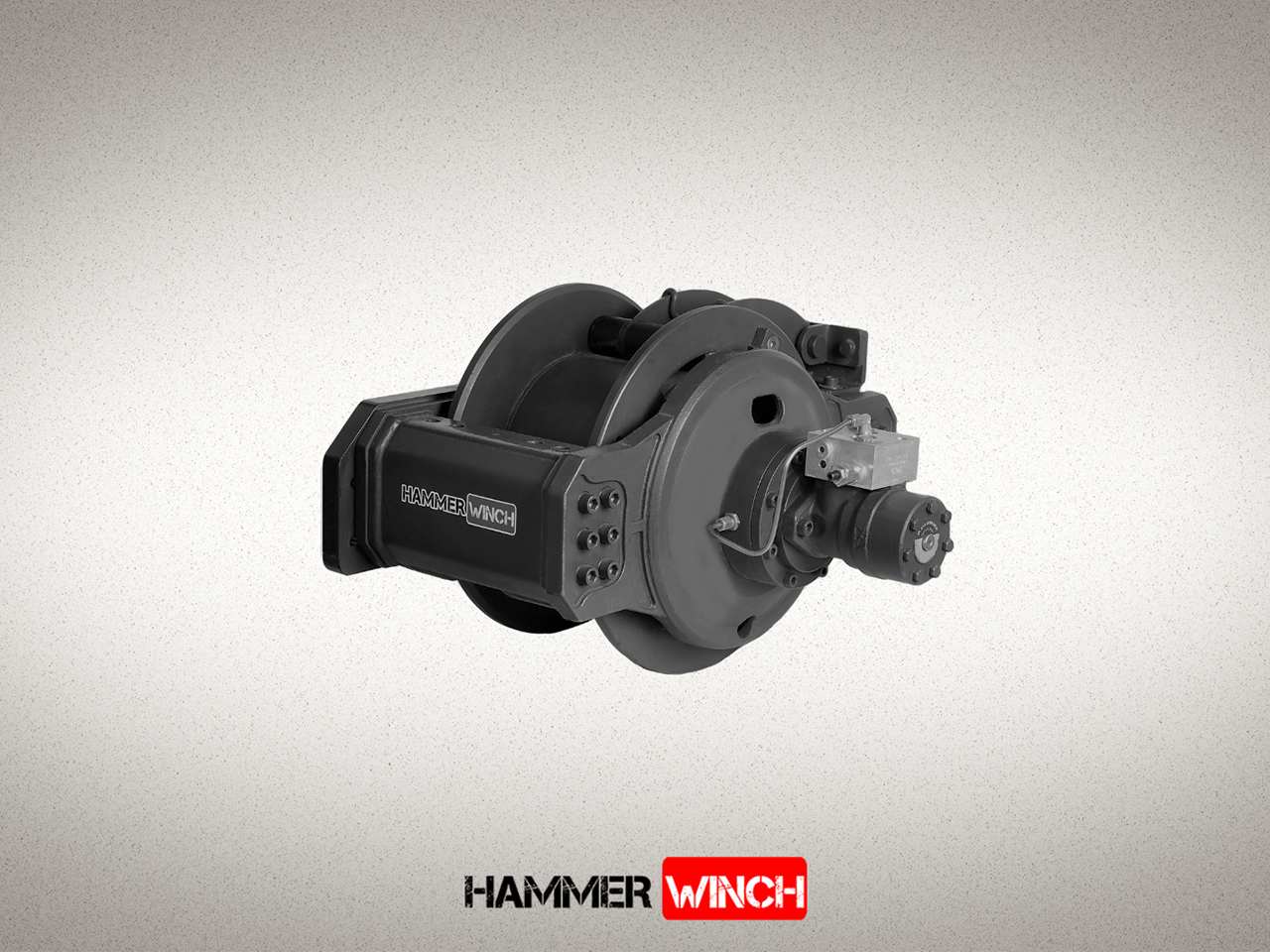

HMW 12.0 SDW Hydraulic Winch

12 Ton Capacity Hydraulic Winch

Extra reinforced steel cast body.
Lightweight and strong design, high rope capacity.
Negative-acting hydraulic brake holding reinforced.
Dynamics, strong hydraulic motor and high strength cast drum.
EN 14492-1 : 2006 Power driven winches supported.
CE Machinery Directive 2006/42/EC

Categories: 10-15 Ton Hydraulic Winches, Hydraulic Winch

Description

Technical Specifications

Max. pulling capacity (kg/Ibs):	12000 kg (26452 Ibs)
Max. rope length (m/ft):	62 m (203.3 ft)
Max. rope length for EN (m/ft):	47.4 m (155.5 ft)
Recommended wire rope (mm/in):	16 mm (7/11″) 2160 Mpa
Hydromotor (cc/in³):	200 cc (9.6 in³)
Max. pump flow (L/min-g/min):	60 L/min ( 15.8 g/min)
Gear ratio:	34.5:1
Oil types and capactiy:	85 W 90 – 2 L
Max. working pressure (bar/psi):	200 bar (2900 psi)
Winch (kg/Ibs):	199 kg (438.6 lbs)
Cable Tensioner (kg/Ibs):	7 kg (15,4 lbs)

HMW 12.0 SDW Manuel Clutch Shifter

HMW 12.0 SDW/P Air Clutch Shifter

For detailed information about Hydraulic Winch: HMW 12.0 SDW Hydraulic Winch
