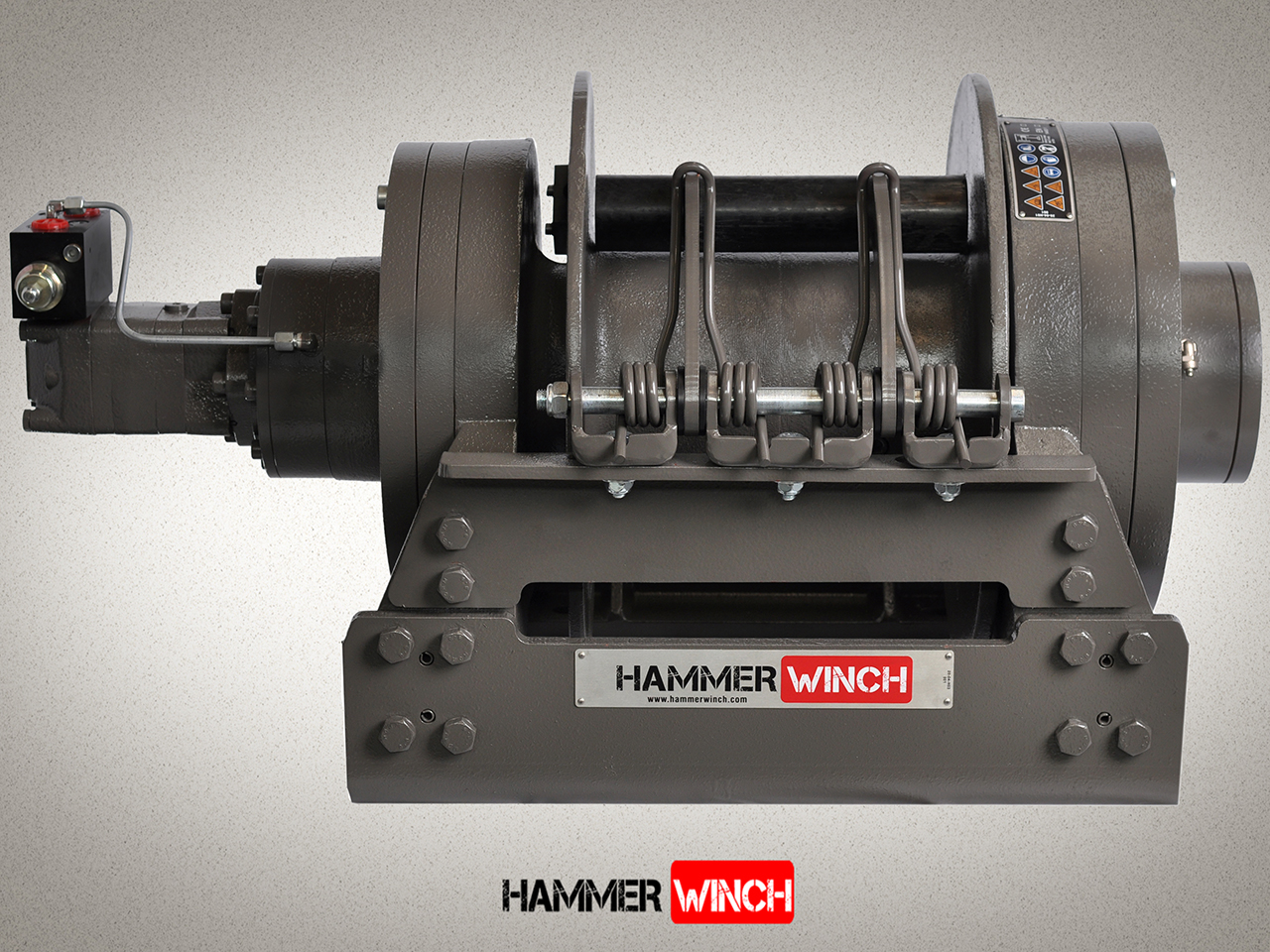

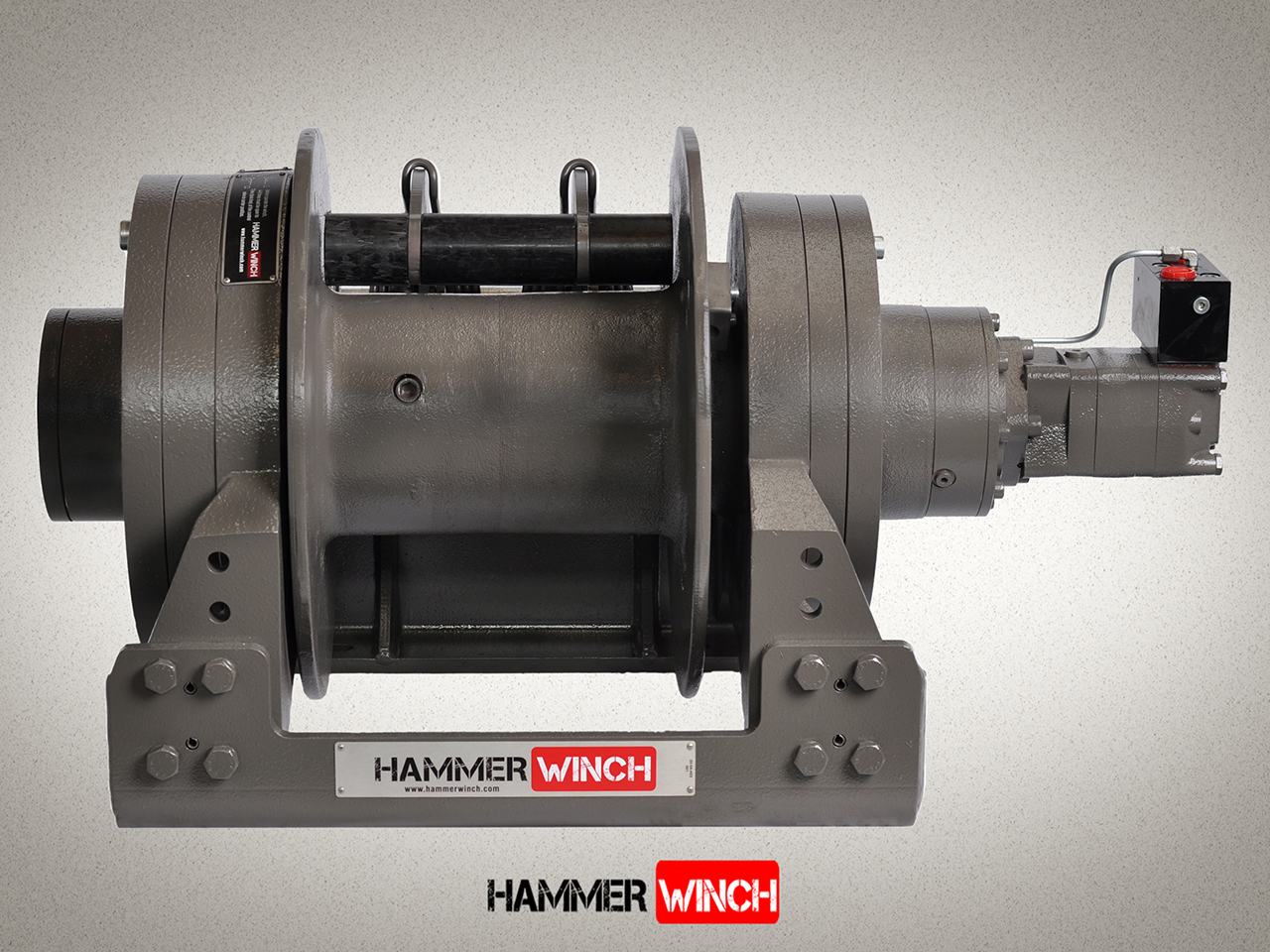

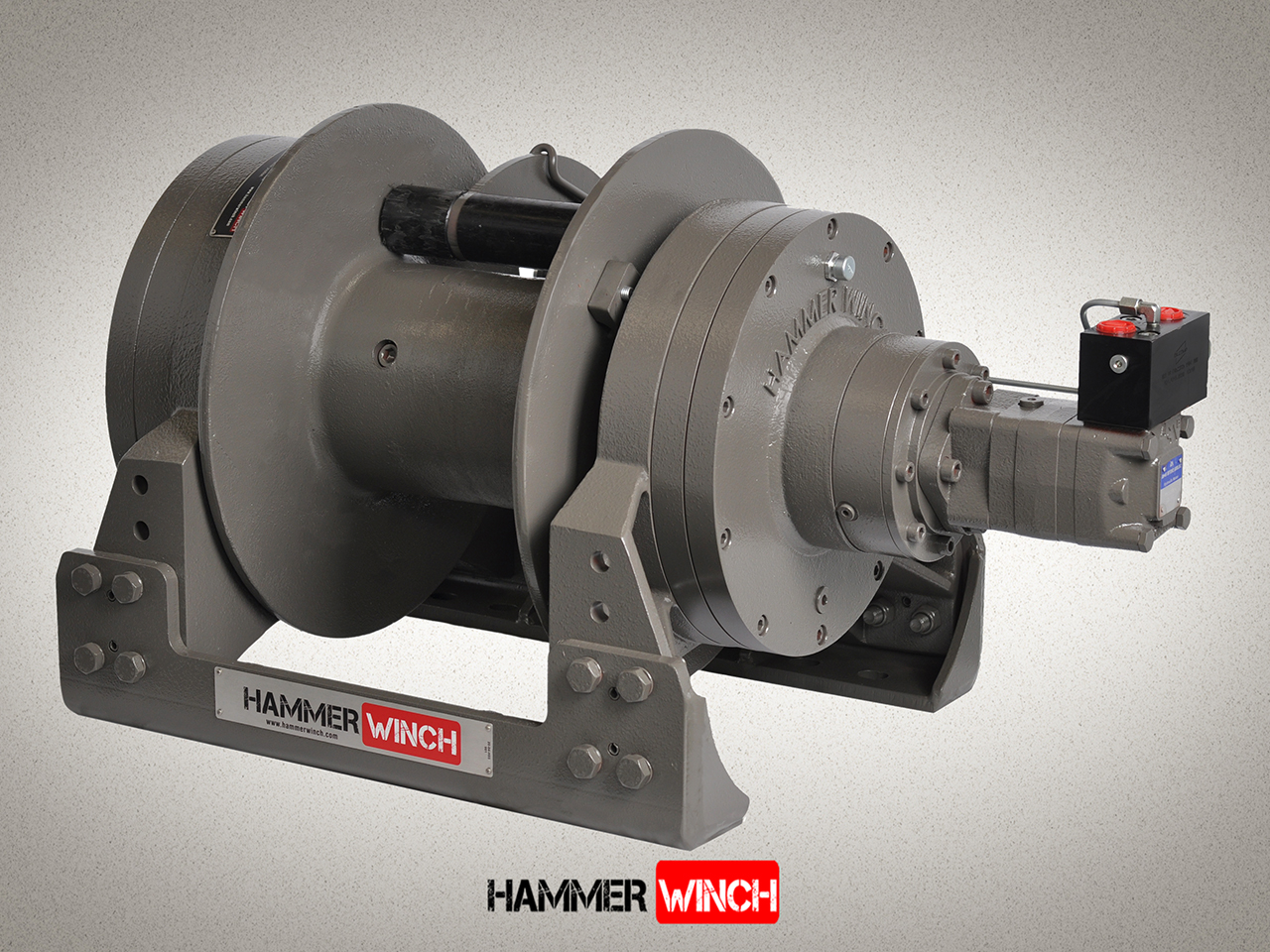

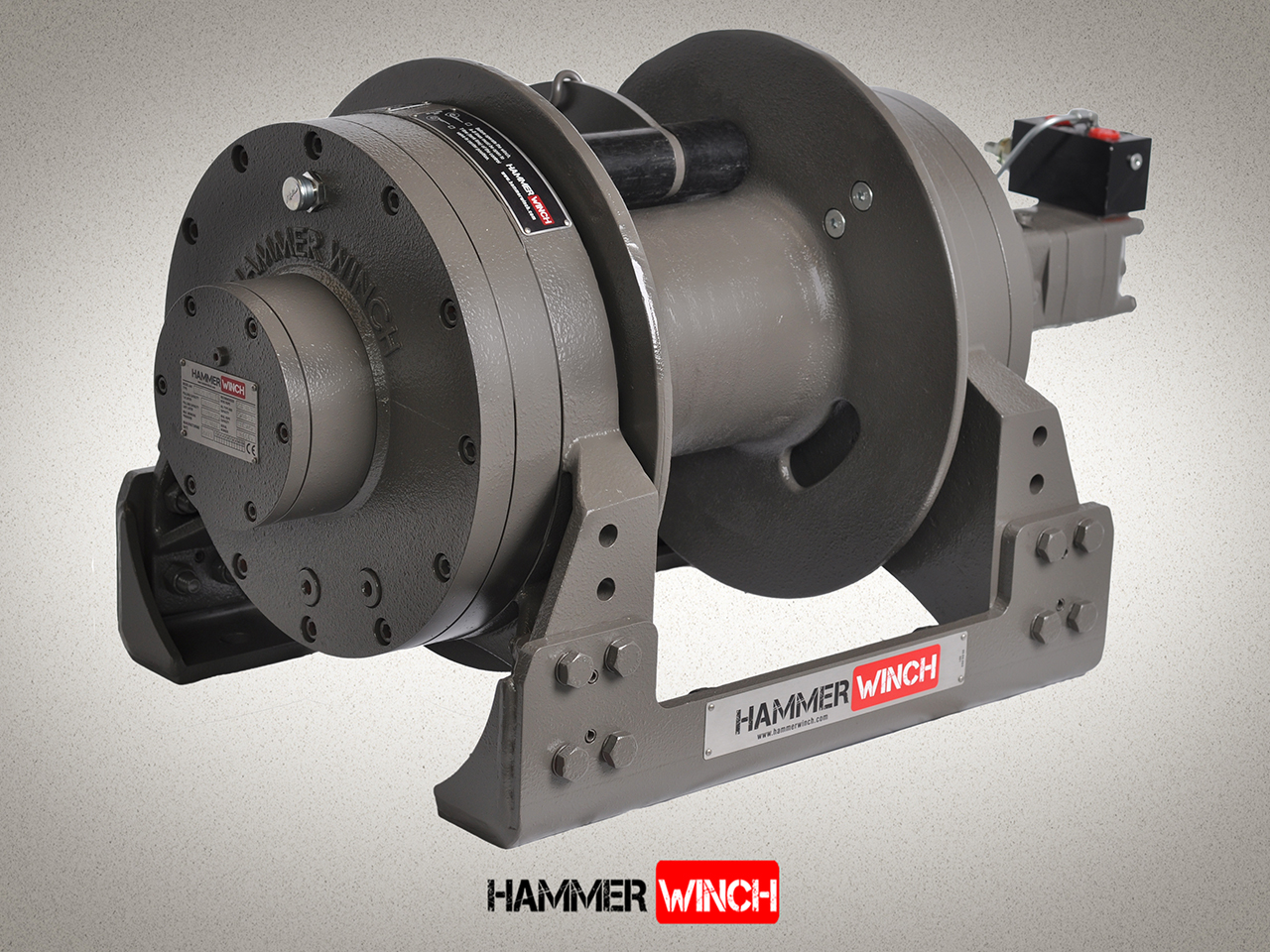

HMW 22.0 PHT - EN Hydraulic Winch
22 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body through the heat treatment and industrial design
- Light and robust design.
- 100% Holding Negative-Acting Hydraulic brake system.
- Standard pneumatic rope unloading system.
- Easy assembly, compact design and high torque hydromotor.
- Two-stage planetary gear system.
- EN 14492-1 : 2006 Power Driven winches supported
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 22.000 kg (48488 Ibs) |
| Max. rope length (m/ft): | 77.4 m (254 ft) |
| Max. rope length for EN (m/ft): | 60.8 m (199 ft) |
| Recommended wire rope (mm/in): | 22 mm (7/8”) 2160 Mpa Compact |
| Hydromotor (cc/in³): | 250 cc (15 in³) |
| Max. pump flow (L/min-gal/min): | 75 L/min (19.8 g/min) |
| Gear ratio: | 46:1 |
| Oil types and capactiy: | 85 W 140 - 1,5 L |
| Max. working pressure (bar/psi): | 170 bar (2465 psi) |
| Winch (kg/Ibs): | 345 kg (760.4 lbs) |
| Cable Tensioner (kg/Ibs): | 8 kg (17,6 lbs) |
HMW 22.0 PHT - EN Manuel Clutch Shifter
HMW 22.0 PHT - EN/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 22.0 PHT EN Hydraulic Winch
