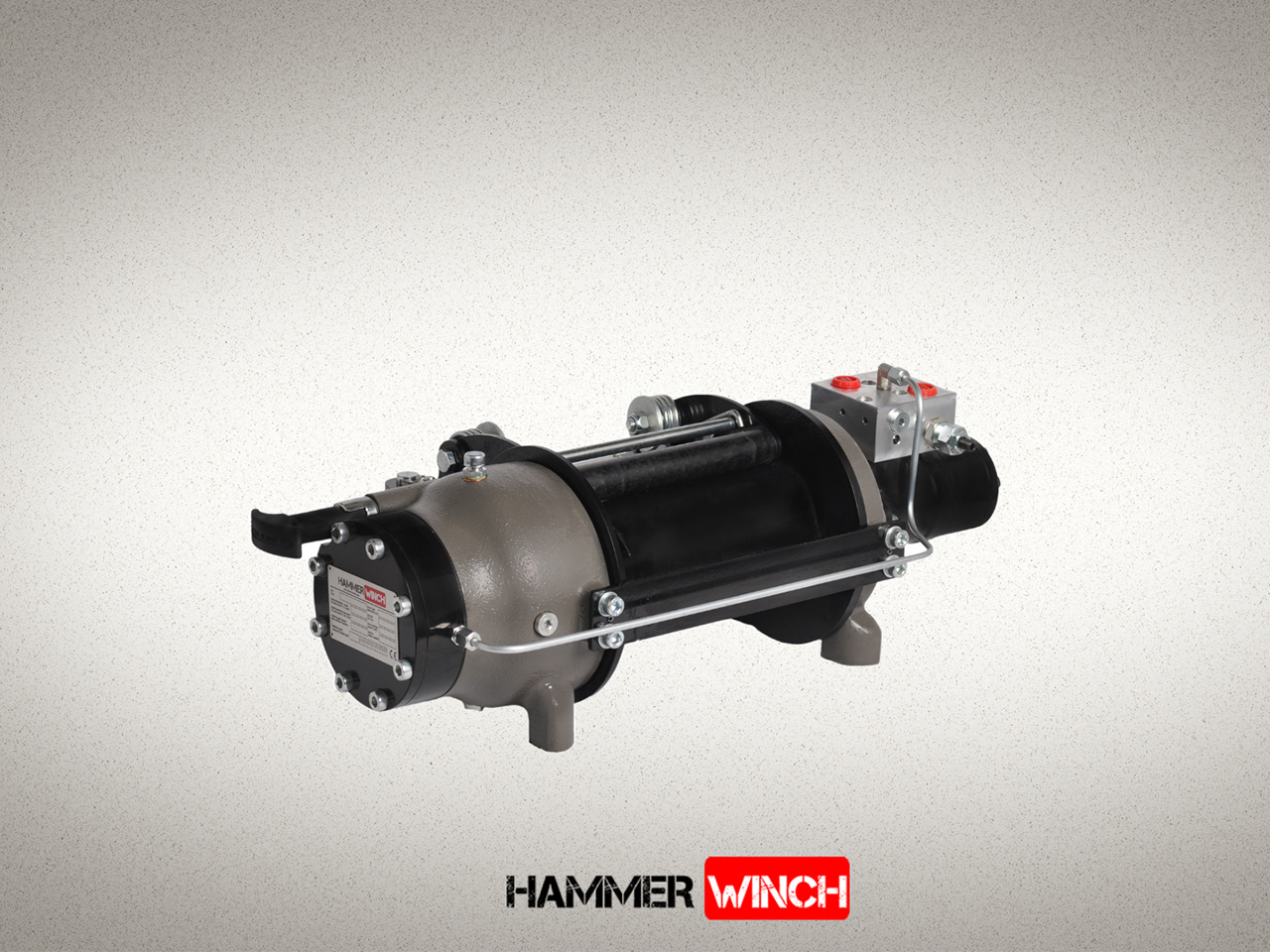

HMW 4.0 PHT - ST Hydraulic Winch
4 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body through the heat treatment and industrial design
- Light and robust design
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor
- Standard manual rope unloading system
- CE Machinery Directive 2006/42/EC
- Meets SAE J706 rating
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 4000 kg (8816 Ibs) |
| Max. rope length (m/ft): | 53.8 m (176 ft) |
| Recommended wire rope (mm/in): | 10mm (3/8”) 1960 Mpa |
| Hydromotor (cc/in³): | 250 cc (15 in³) |
| Max. pump flow (L/min-g/min): | 60 L (15.8 Gal) |
| Gear ratio: | 5,6:1 |
| Oil types and capactiy: | 85 W 90-0,75 L |
| Max. working pressure (bar/psi): | 140 Bar (2030 psi) |
| Winch (kg/Ibs): | 60 kg (132 Ibs) |
| Roller Fairlead (kg/lbs): | 6 kg (13,22 lbs) |
| Cable Tensioner (kg/Ibs): | 2,5 kg (5,51 lbs) |
HMW 4.0 PHT - ST Manuel Clutch Shifter
HMW 4.0 PHT - ST/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 4.0 PHT - ST Hydraulic Winch
