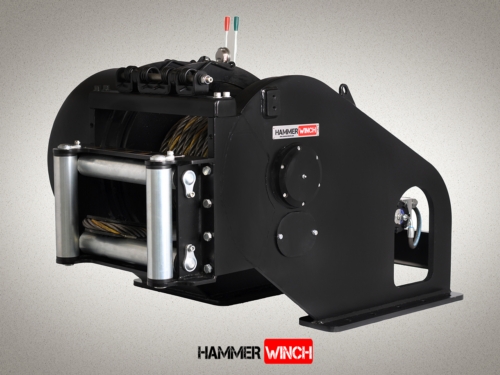

HMW 40.0 THT Hydraulic Winch
40 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body.
- Lightweight and strong design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor.
- Standard manual rope unloading system.
- CE Machinery Directive 2006/42/EC
- Meets SAE J706 rating
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 40000 kg (88169 Ibs) |
| Max. rope length (m/ft): | 75 m (246 ft) |
| Max. rope length for SAE (m/ft): | 59.5 m (195.3 ft) |
| Recommended wire rope (mm/in): | 28 mm (10/9") 2160 Mpa |
| Hydromotor (cc/in³): | 125 cc (7.5 in³) |
| Max. pump flow (L/min-gal/min): | 75 L/min (19.8 g/min) |
| Gear ratio: | 158:1 |
| Oil types and capactiy: | 85 W 140 - 16 L |
| Max. working pressure (bar/psi): | 210 bar (3045 psi) |
| Winch (kg/Ibs): | 755.4 kg (1665 Ibs) |
| Roller Fairlead (kg/lbs): | 50 kg (110.2 lbs) |
| Cable Tensioner (kg/Ibs): | 12 kg (26.4 lbs) |
PN HMW 40.0 THT Manuel Clutch Shifter
PN HMW 40.0 THT/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 40.0 THT Hydraulic Winch
