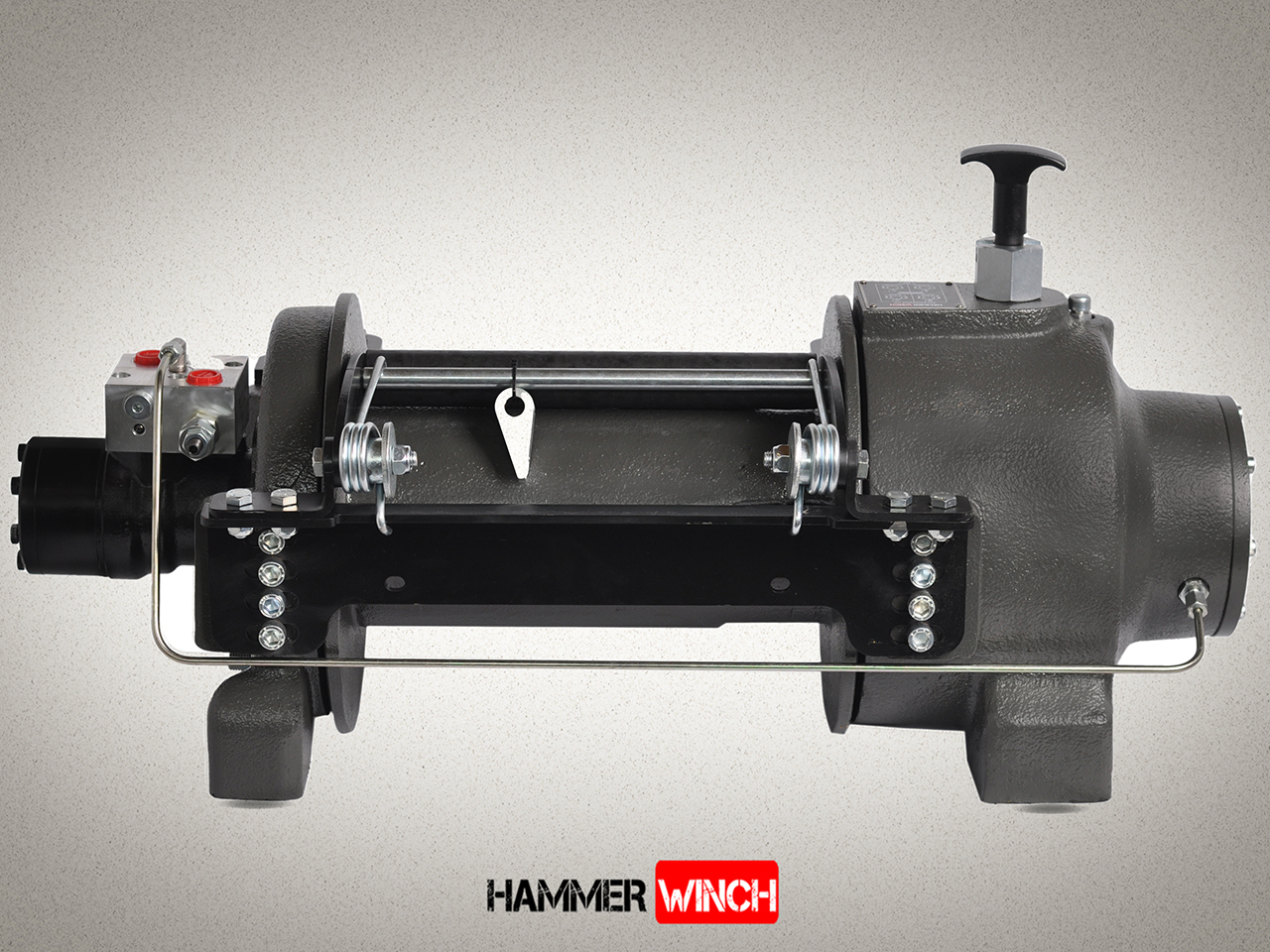

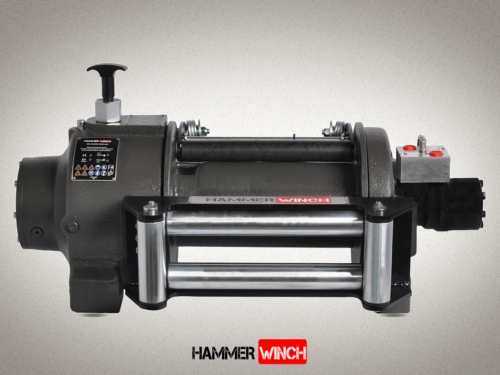

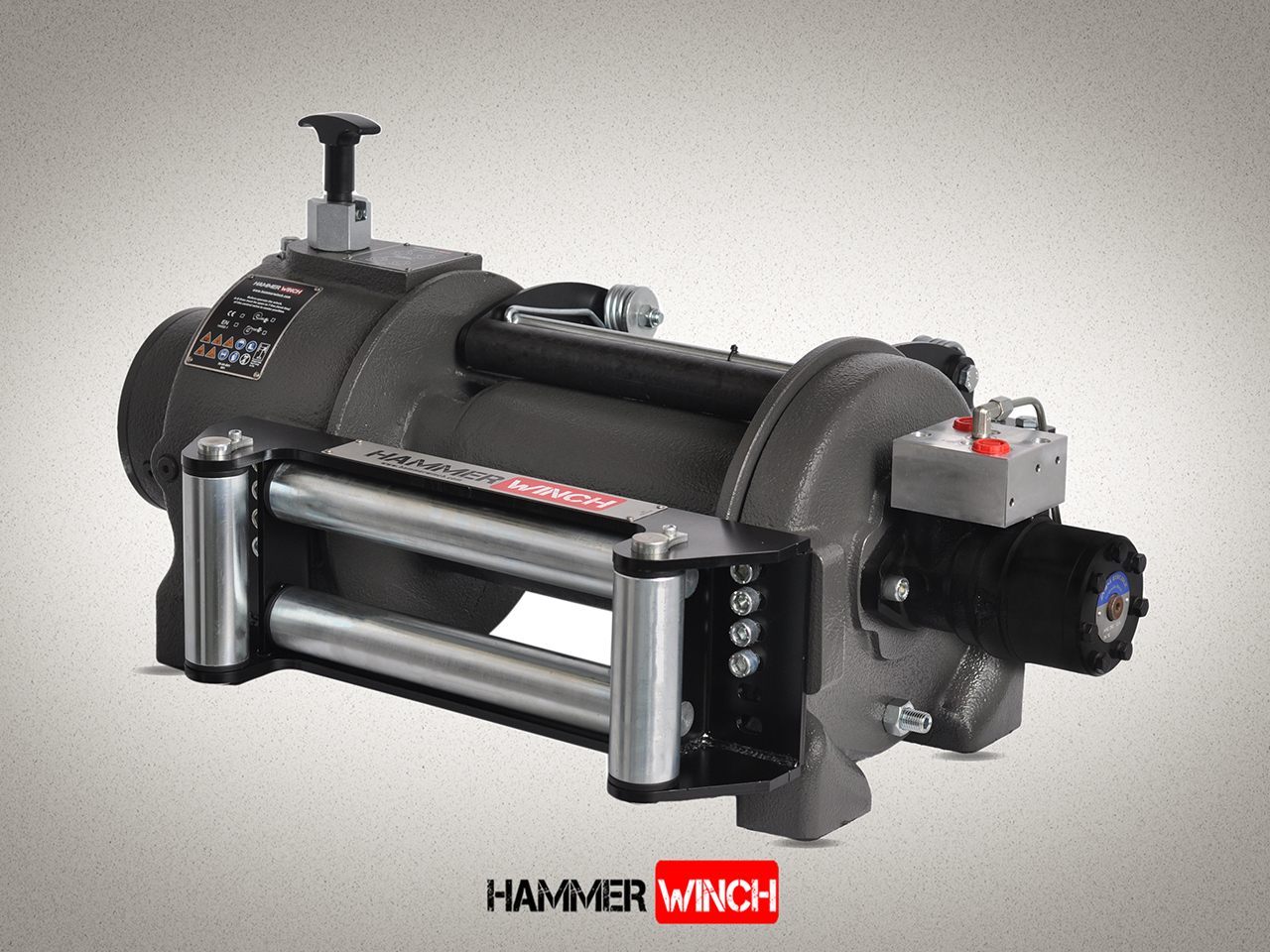

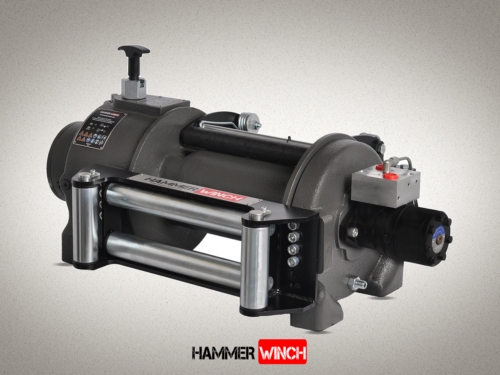

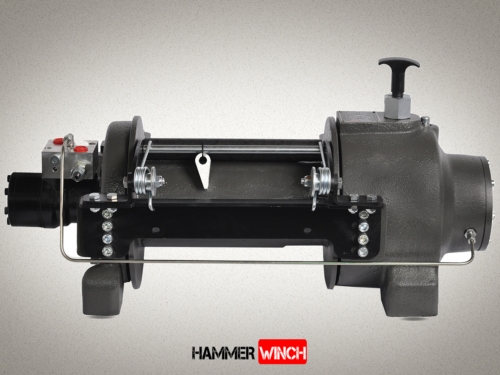

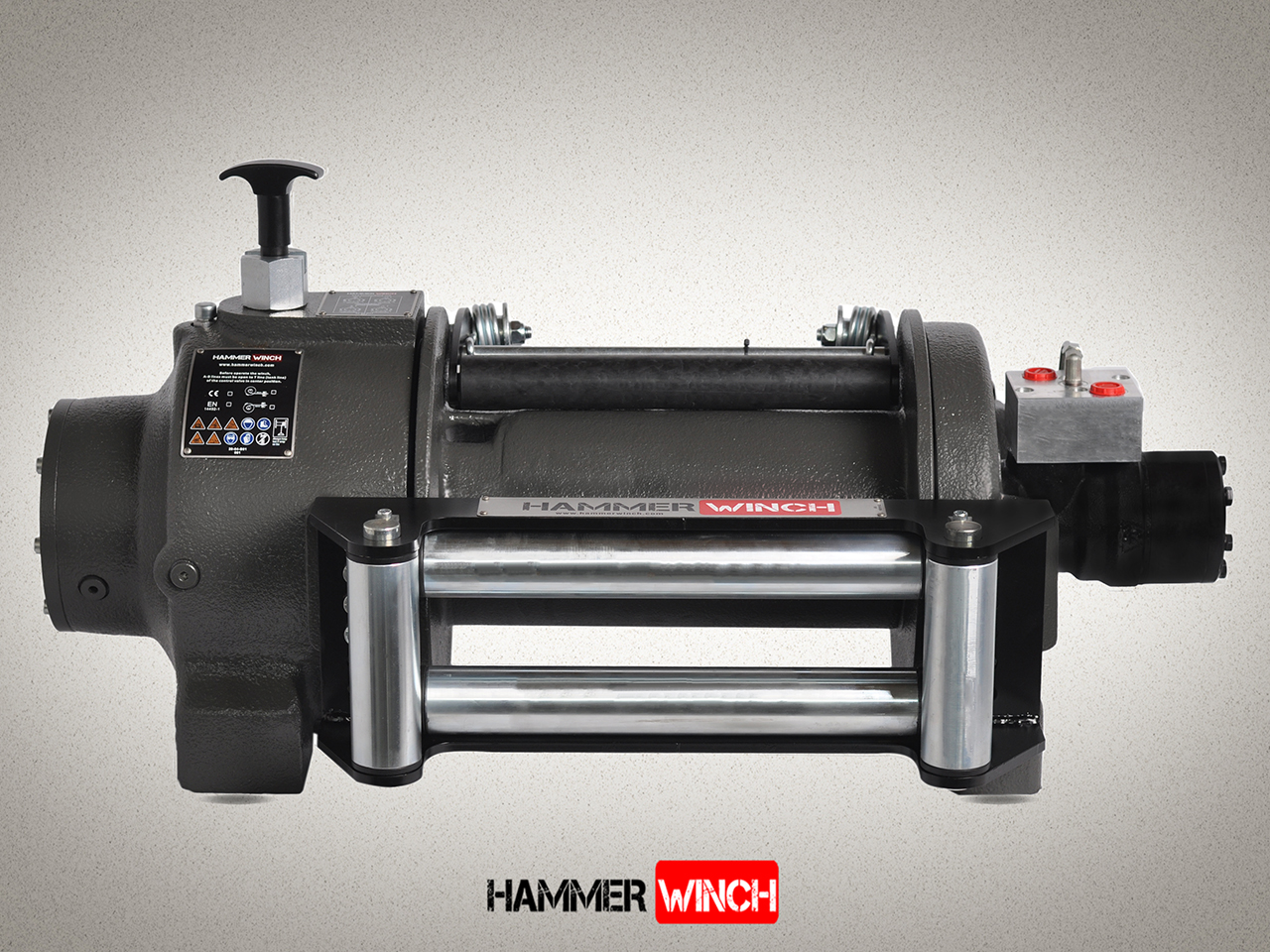

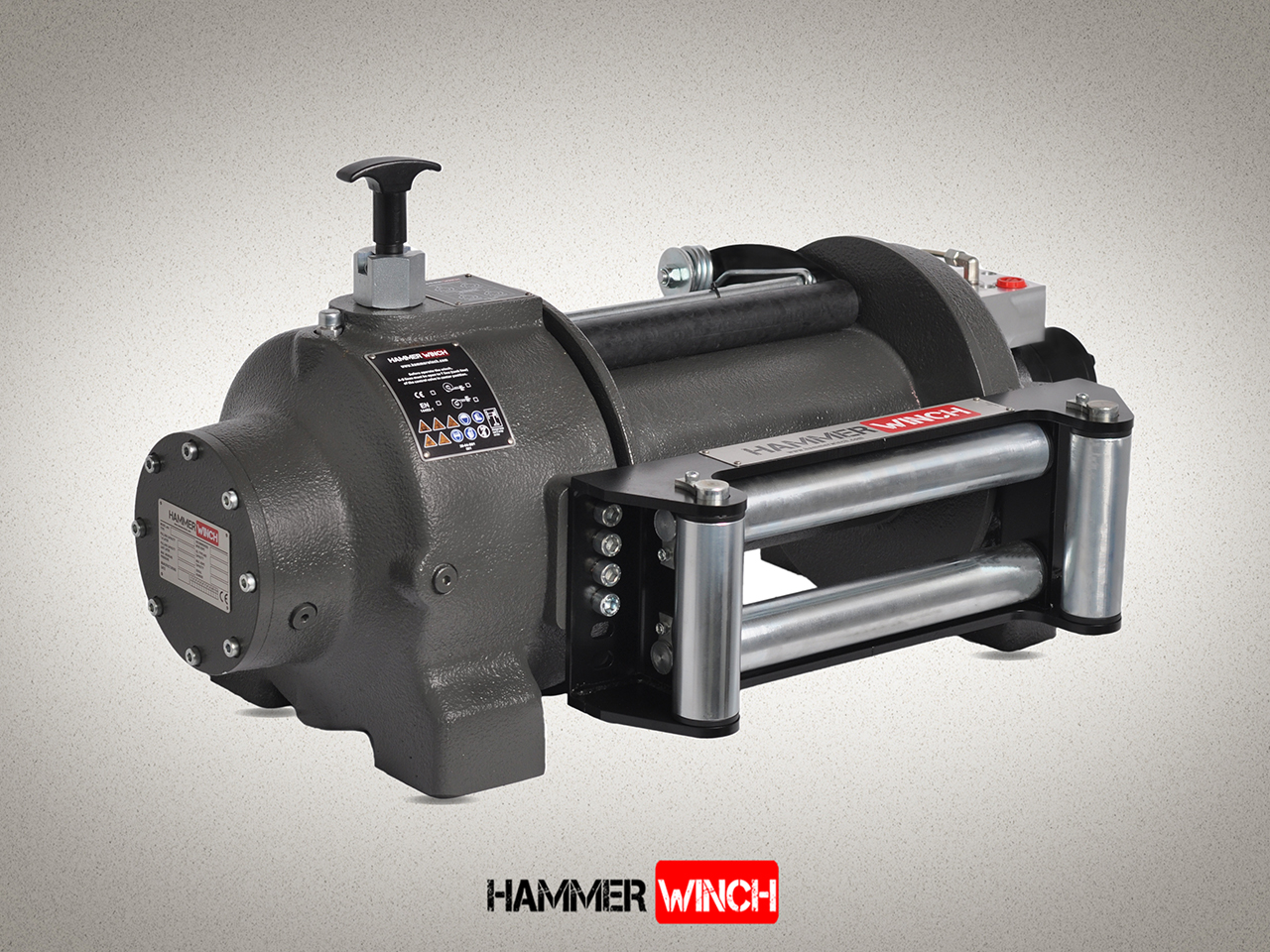

HMW 14.2 PHT - EN Hydraulic Winch
14.2 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body through the heat treatment and industrial design
- Light and robust design
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor
- Standard manual rope unloading system
- EN 14492-1 : 2006 Power Driven winches supported
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 14200 kg (31297 Ibs) |
| Max. rope length (m/ft): | 53 m (173 ft) |
| Max. rope length for EN (m/ft): | 37 m (121 ft) |
| Recommended wire rope (mm/in): | 18 mm (7/10") Compact 2160 Mpa |
| Hydromotor (cc/in³): | 250 cc (15 in³) |
| Max. pump flow (L/min-gal/min): | 60 L (15.8 gal) |
| Gear ratio: | 28:1 |
| Oil types and capactiy: | 85 W 90 - 2 L |
| Max. working pressure (bar/psi): | 167 bar (2421 psi) |
| Winch (kg/Ibs): | 201 kg (443 lbs) |
| Roller Fairlead (kg/lbs): | 18 kg (40 lbs) |
| Cable Tensioner (kg/Ibs): | 8 kg (18 lbs) |
PN HMW 14.2 PHT-EN Manuel Clutch Shifter
PN HMW 14.2 PHT/P-EN Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 14.2 PHT - EN Hydraulic Winch
