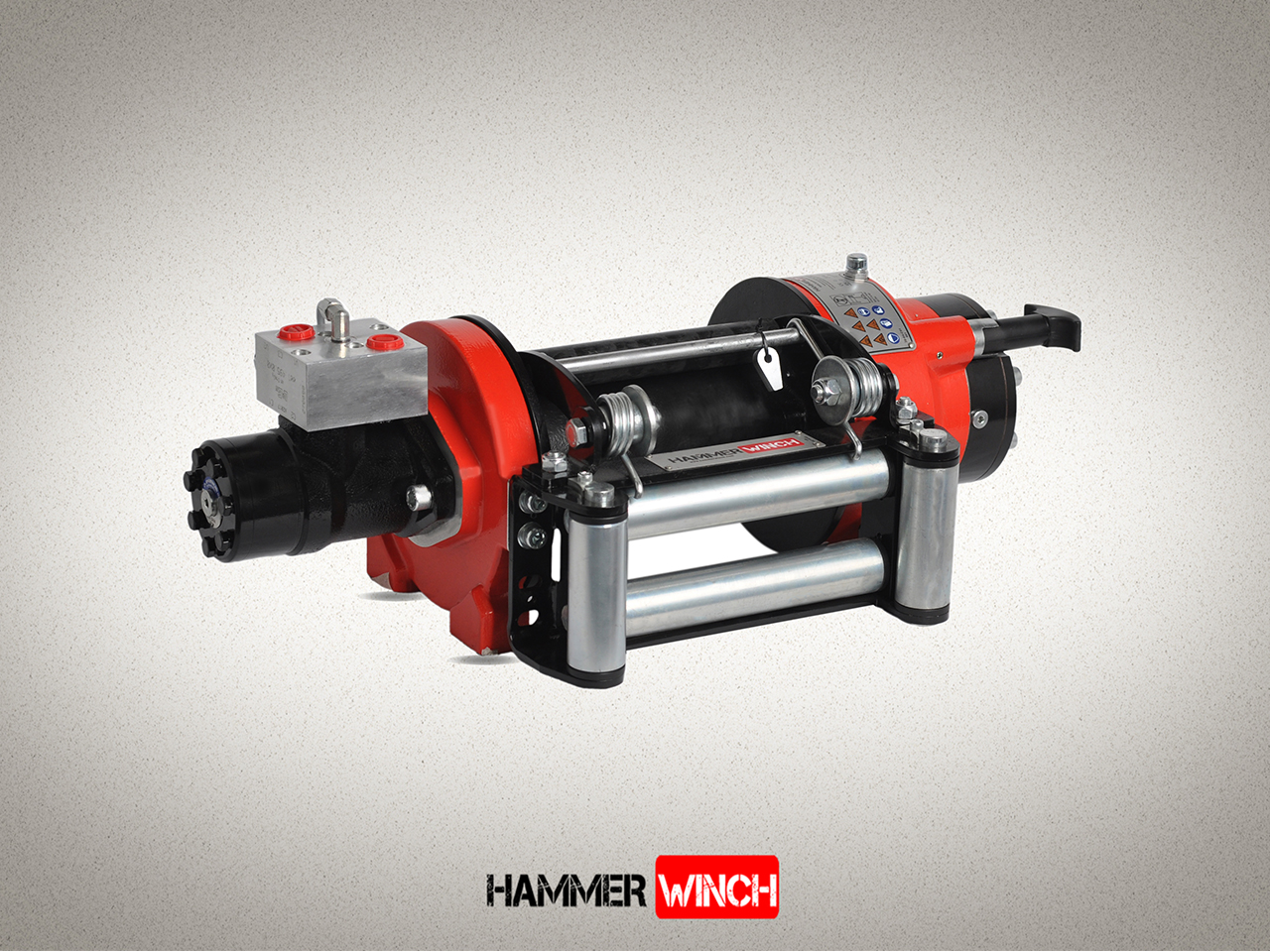

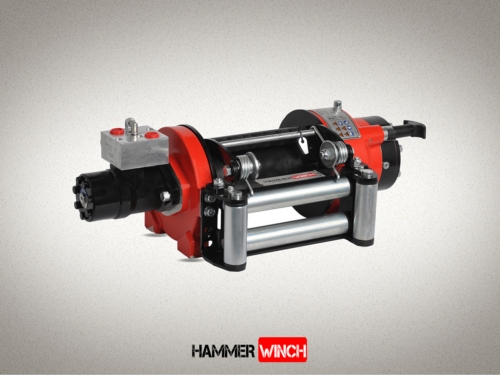

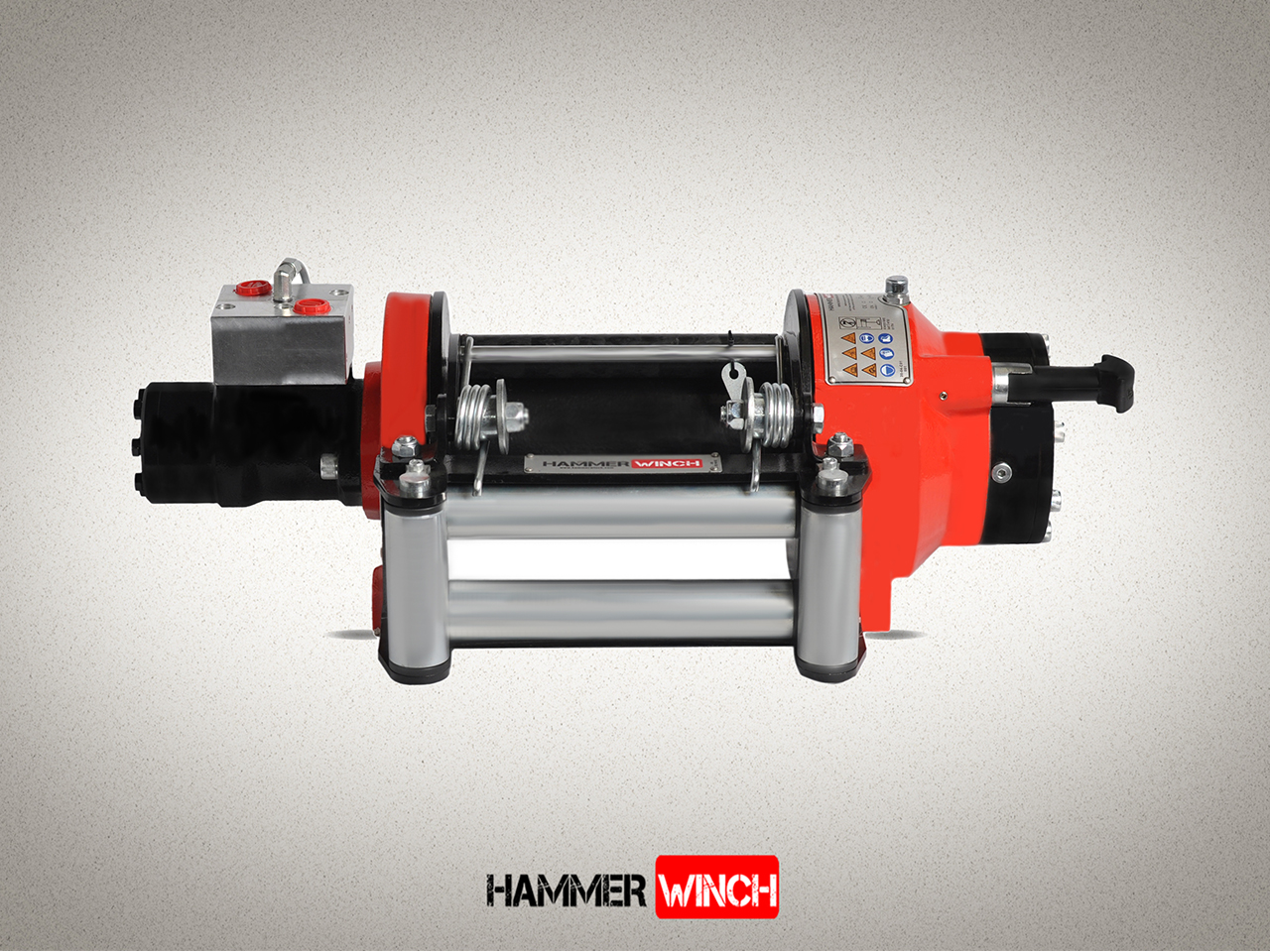

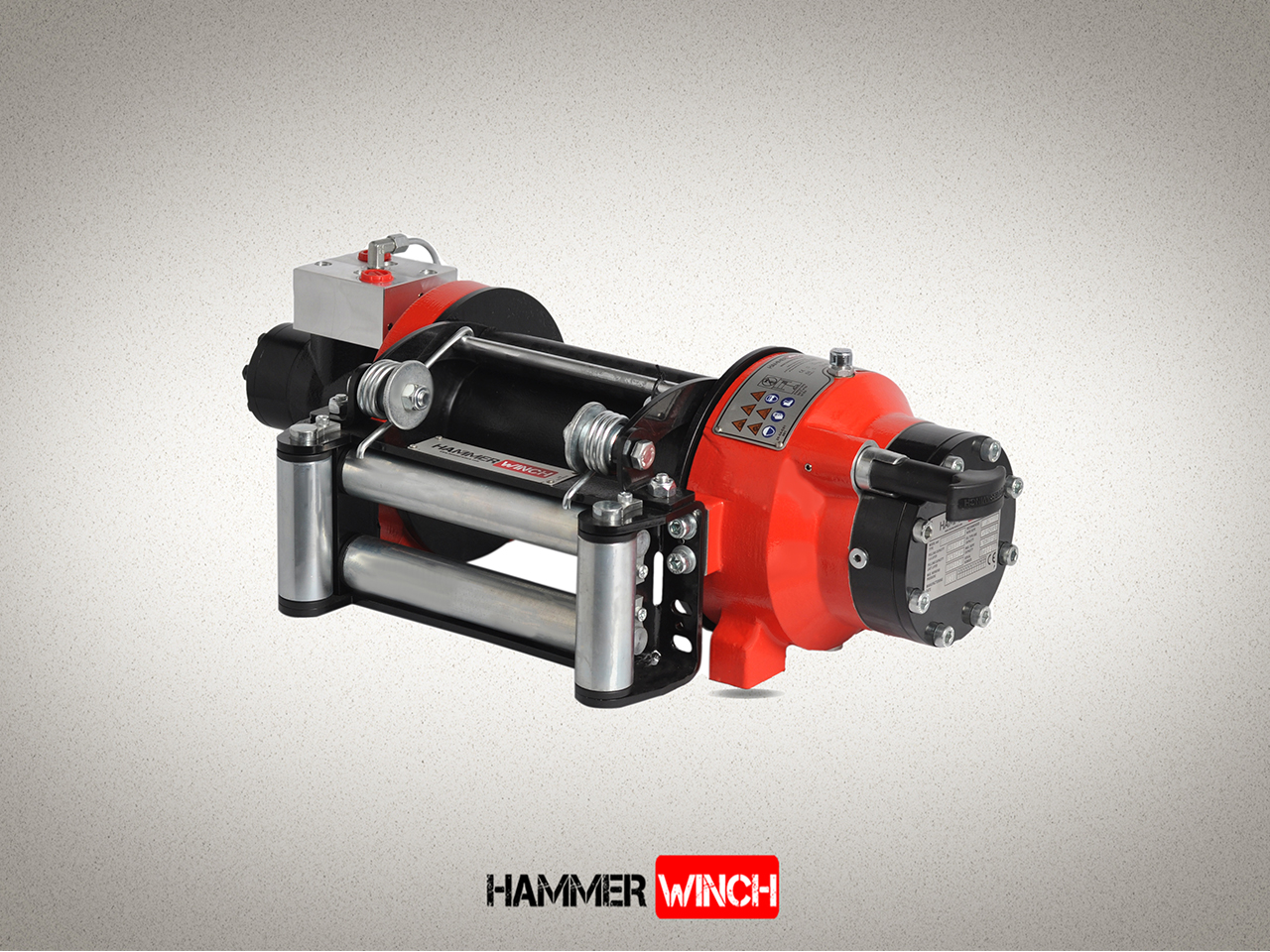

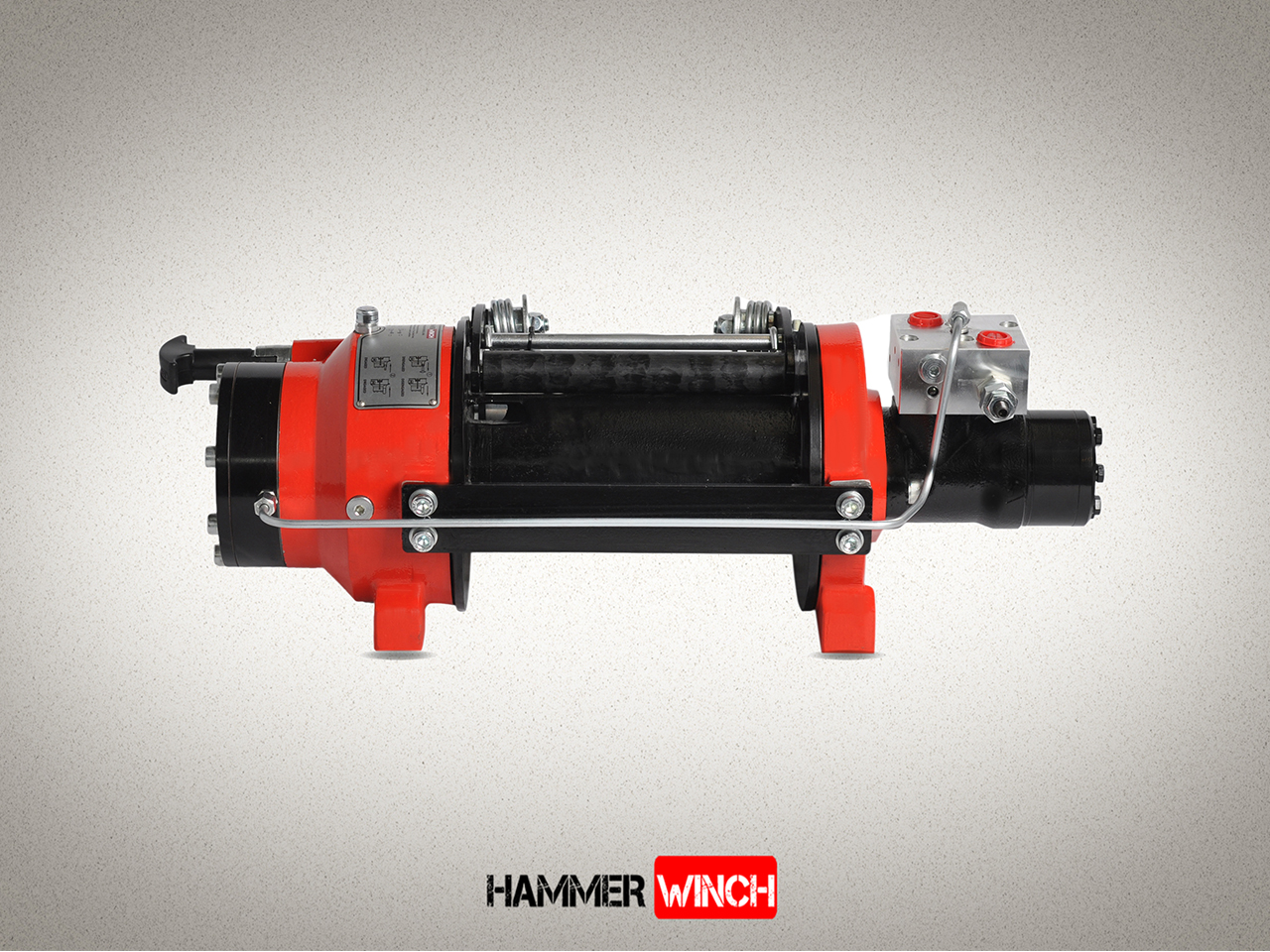

HMW 3.6 PHT - EN Hydraulic Winch
3.6 Ton Capacity Hydraulic Winch
- Extra reinforced aluminium cast body through the heat treatmentand industrial design.
- Light and robust design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor.
- Standard manual rope unloading system.
- EN 14492-1 : 2006 Power driven winches supported.
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 3550 kg (7824 lbs) |
| Max. rope length (m/ft): | 53.8 m (176.4 ft) |
| Max. rope length for EN (m/ft): | 40.6 m (133 ft) |
| Recommended wire rope (mm/in): | 10 mm (3/8”) 1960 Mpa |
| Hidromotor (cc/in³): | 250 cc (15 in³) |
| Max. pump flow (L/min-g/min): | 60 L/min (15.8 g/min) |
| Gear ratio: | 5,6:1 |
| Oil types and capactiy: | 85 W 90-0,75 L |
| Max. working pressure (bar/psi): | 125 bar (1812 psi) |
| Winch (kg/Ibs): | 54 kg (119 Ibs) |
| Roller Fairlead (kg/lbs): | 6 kg (13,22 lbs) |
| Cable Tensioner (kg/Ibs): | 2,5 kg (5,51 lbs) |
PN HMW 3.6 PHT-EN Manuel Clutch Shifter
PN HMW 3.6 PHT/P-EN Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 3.6 PHT - EN Hydraulic Winch
