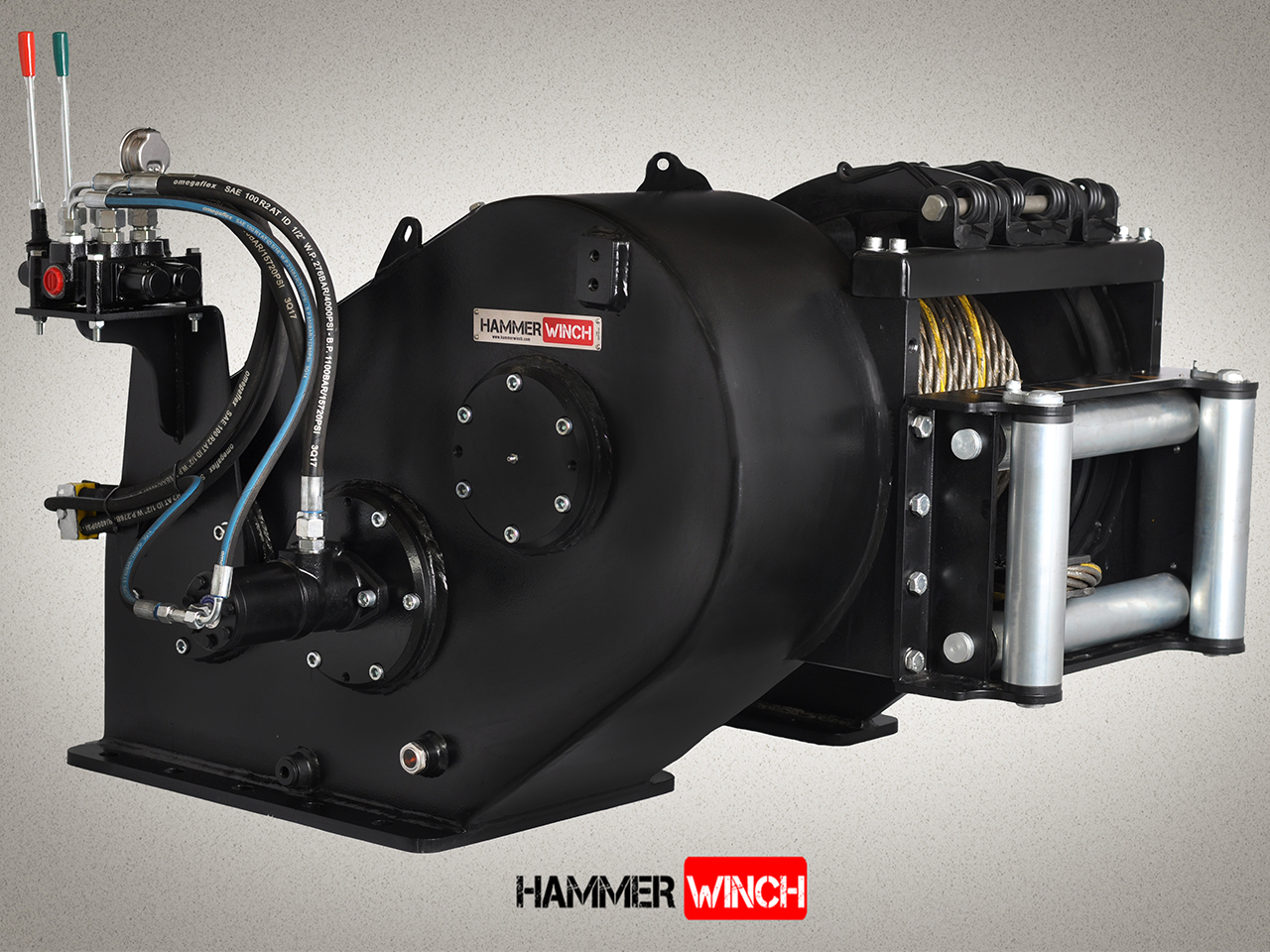

HMW 30.0 THT Hydraulic Winch
30 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body.
- Lightweight and strong design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor.
- Standard manual rope unloading system.
- CE Machinery Directive 2006/42/EC
- Meets SAE J706 rating
Technical Specifications
| Max. pulling capacity (kg/lbs): | 30.000 kg (66.120 Ibs) |
| Max. rope length (m/ft): | 80 m (262 ft) |
| Recommended wire rope (mm/in): | 26 mm (1") 1960Mpa |
| Hydromotor (cc/in³): | 100 cc (6 in³) |
| Max. pump flow (L/min-gal/min): | 60 L/min (15.8 g/min) |
| Gear ratio: | 234:1 |
| Oil types and capactiy: | 85 W 140 - 16 L |
| Max. working pressure (bar/psi): | 170 bar (2465 psi) |
| Winch (kg/lbs): | 738.3 kg (1627.2 Ibs) |
| Roller Fairlead (kg/lbs): | 50 kg (110.2 lbs) |
| Cable Tensioner (kg/lbs): | 12 kg (26.4 lbs) |
PN HMW 30.0 THT Manuel Clutch Shifter
PN HMW 30.0 THT/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 30.0 THT Hydraulic Winch
