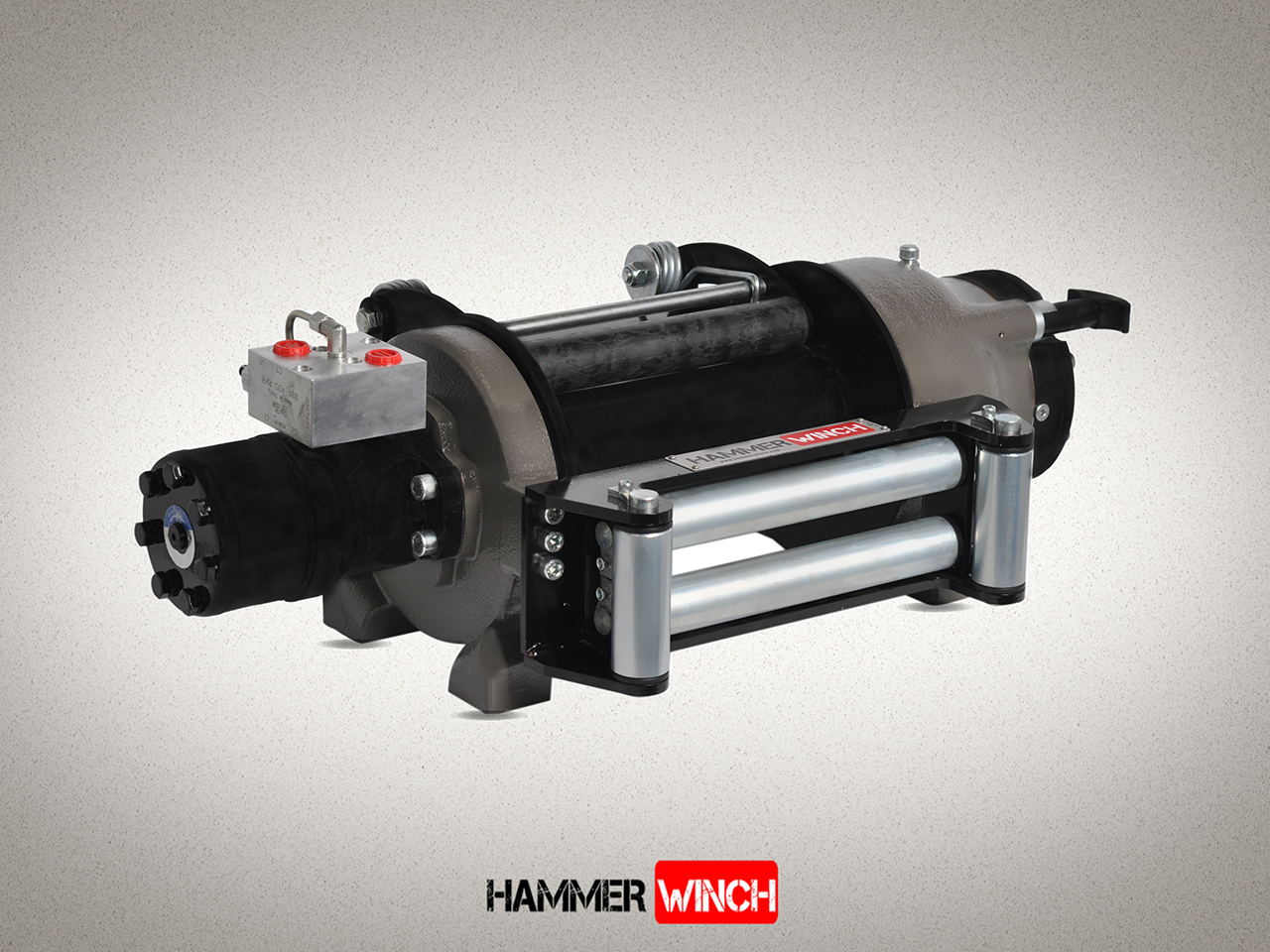

HMW 5.8 PHT - ST Hydraulic Winch
5.8 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body through the heat treatment and industrial design
- Light and robust design
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor
- Standard manual rope unloading system
- CE Machinery Directive 2006/42/EC
- Meets SAE J706 rating
Technical Specifications
| Max. pulling capacity (kg/lbs): | 5800 kg (12783 Ibs) |
| Max. rope length (m/ft): | 48.6 m (159.4 ft) |
| Recommended wire rope (mm/in): | 12mm (1/2”) 1960 Mpa |
| Hydromotor (cc/in³): | 400 cc ( 24 in³) |
| Max. pump flow (L/min-g/min): | 60 L/min (15.8 g/min) |
| Gear ratio: | 5,2:1 |
| Oil types and capactiy: | 85 W 90 - 0,9 L |
| Max. working pressure (bar/psi): | 160 bar (2320 psi) |
| Winch (kg/lbs): | 90 kg (198.4 Ibs) |
| Roller Fairlead (kg/lbs): | 9 kg |
| Cable Tensioner (kg/lbs): | 4 kg (9 lbs) |
HMW 5.8 PHT - ST Manuel Clutch Shifter
HMW 5.8 PHT - ST/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 5.8 PHT - ST Hydraulic Winch
