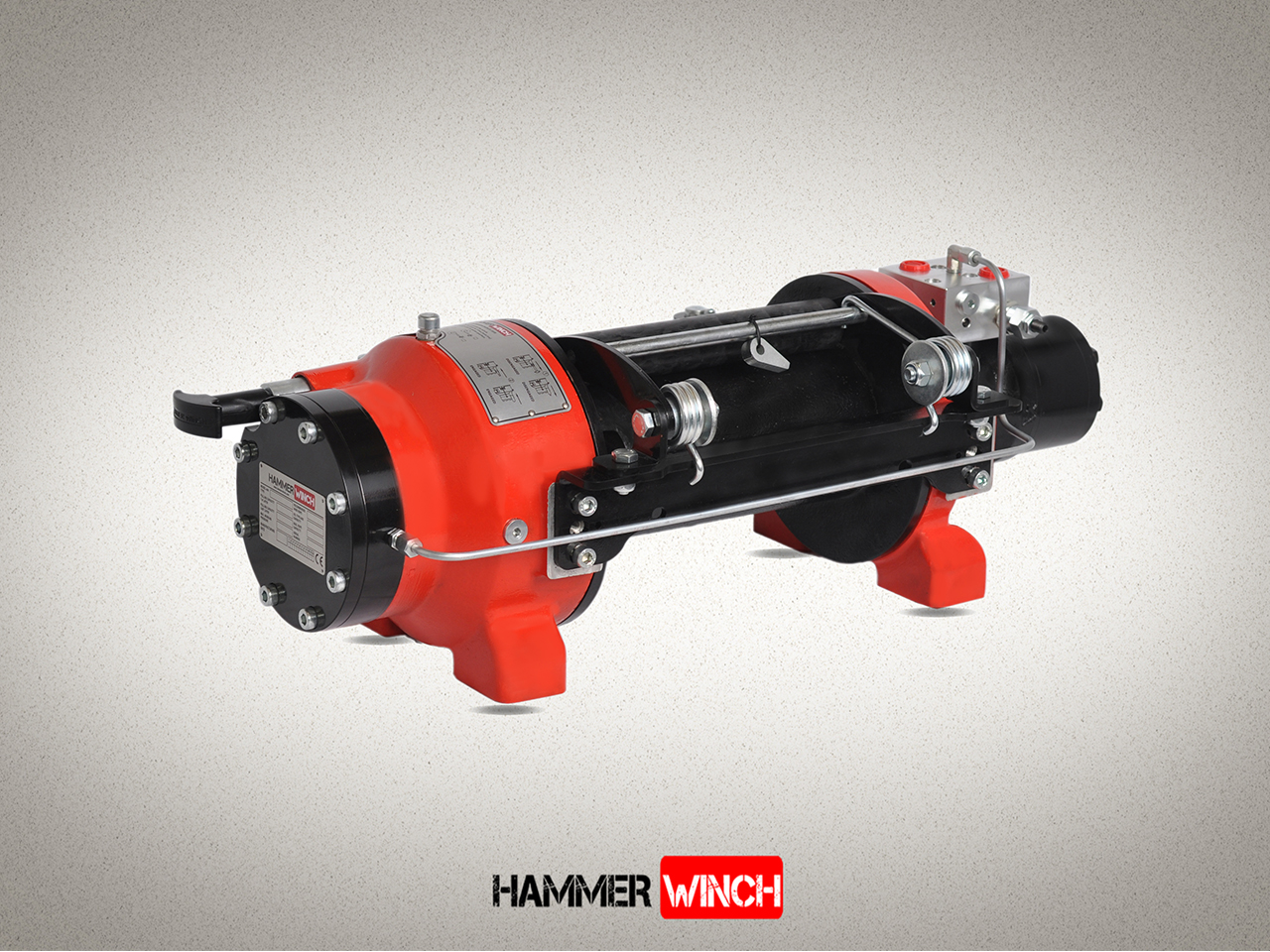

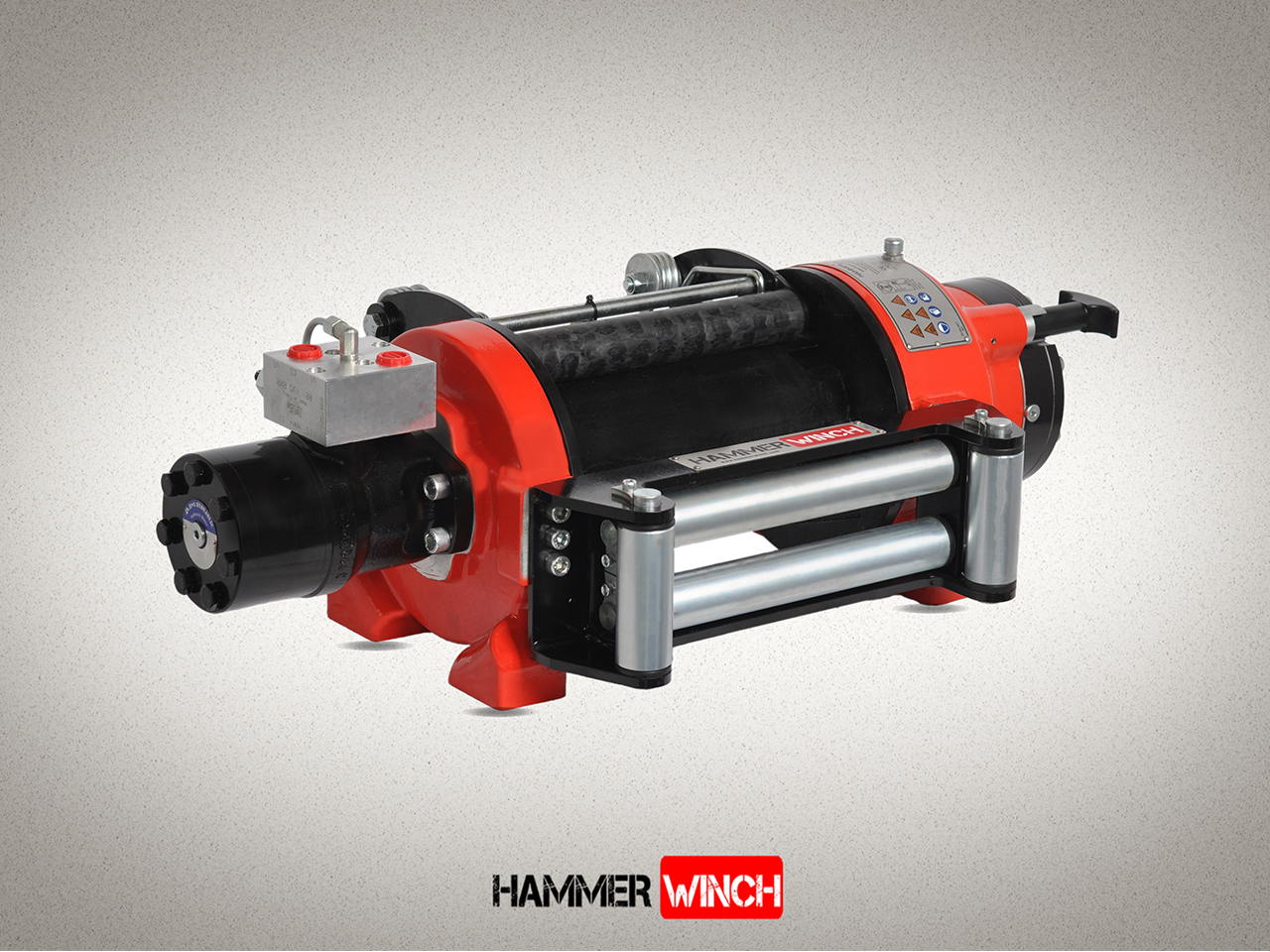

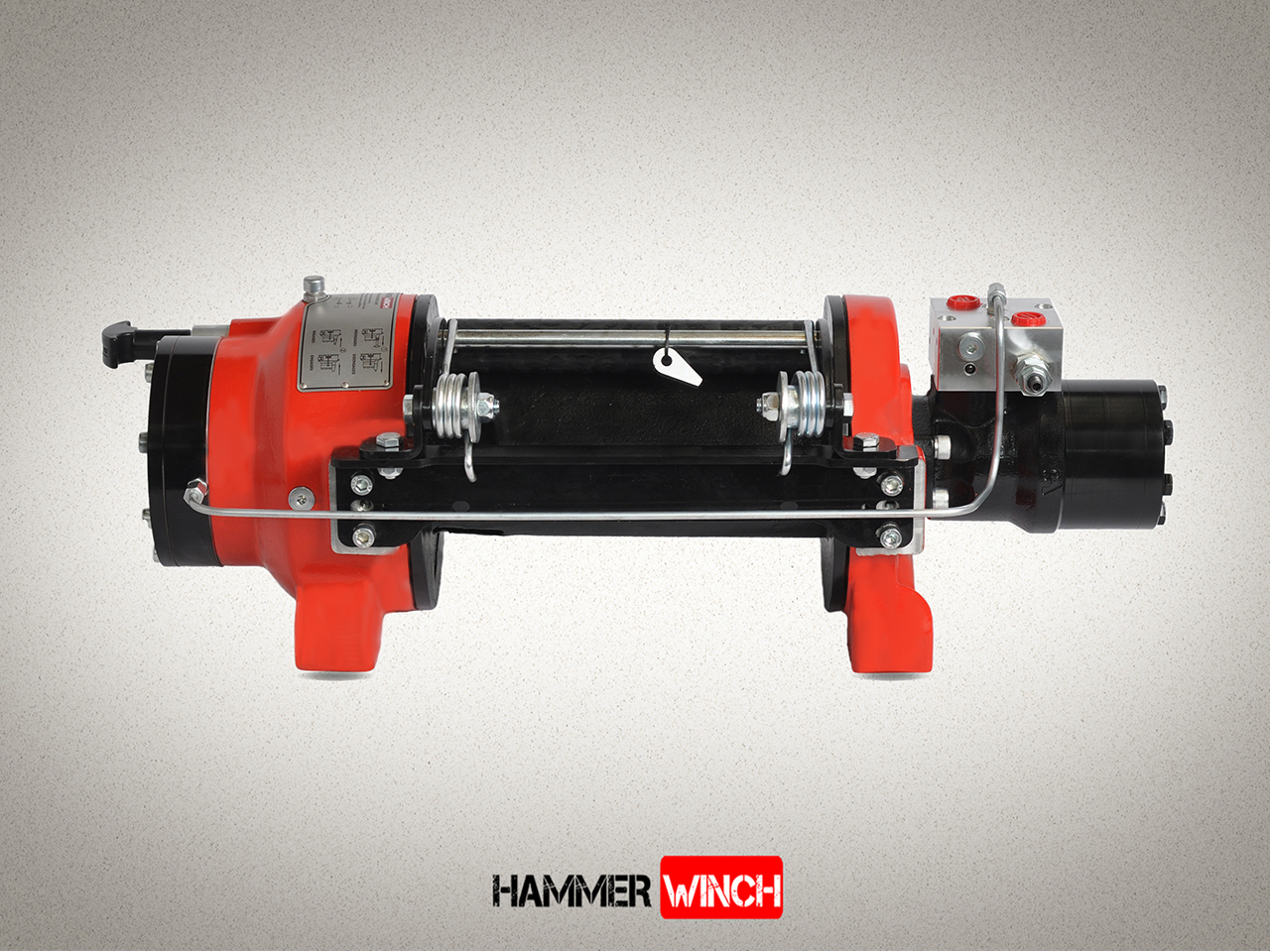

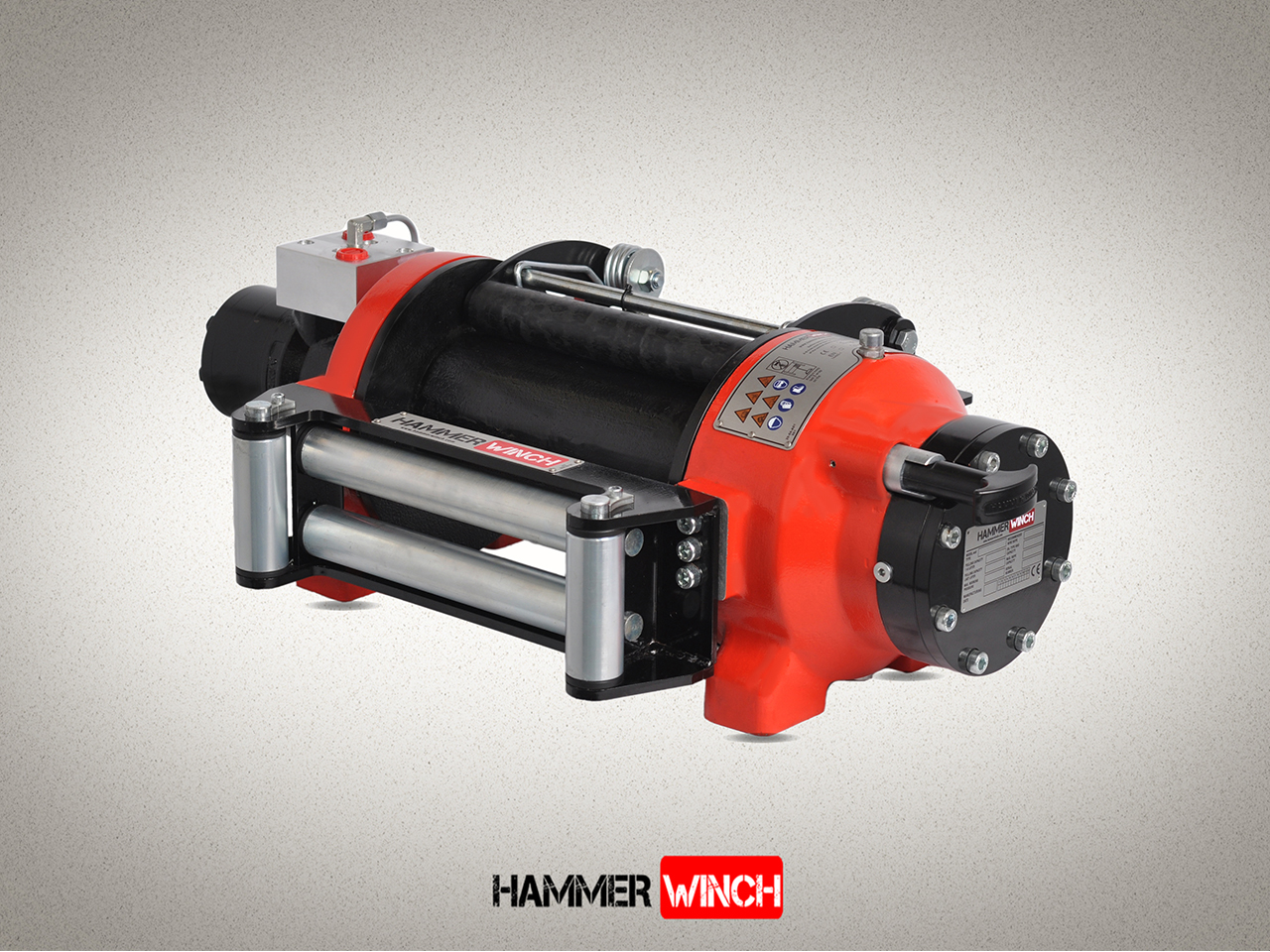

HMW 6.6 PHT - EN Hydraulic Winch
6.6 Ton Capacity Hydraulic Winch
- Extra reinforced aluminium cast body through the heat treatment and industrial design.
- Light and robust design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor.
- Standard manual rope unloading system.
- EN 14492-1 : 2006 Power driven winches supported.
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 6600 kg (14546 Ibs) |
| Max. rope length (m/ft): | 43 m (141 ft) |
| Max. rope length for EN (m/ft): | 30 m (98.4 ft) |
| Recommended wire rope (mm/in): | 14 mm (5/9”) 1960 Mpa |
| Hydromotor (cc/in³): | 400 cc (24 in³) |
| Max. pump flow (L/min-gal/min): | 75 L/min (19.8 g/min) |
| Gear ratio: | 5,2:1 |
| Oil types and capactiy: | 85 W 90 - 0,9 L |
| Max. working pressure (bar/psi): | 190 bar (2755 psi) |
| Winch (kg/Ibs): | 88.5 kg (195 Ibs) |
| Roller Fairlead (kg/lbs): | 11 kg (24,2 lbs) |
| Cable Tensioner (kg/Ibs): | 4,5 kg (9,9 lbs) |
PN HMW 6.6 PHT-EN Manuel Clutch Shifter
PN HMW 6.6 PHT/P-EN Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 6.6 PHT - EN Hydraulic Winch
