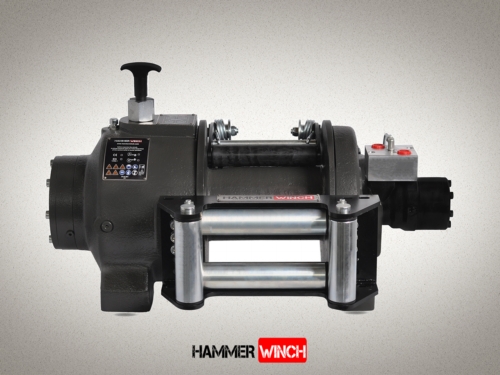

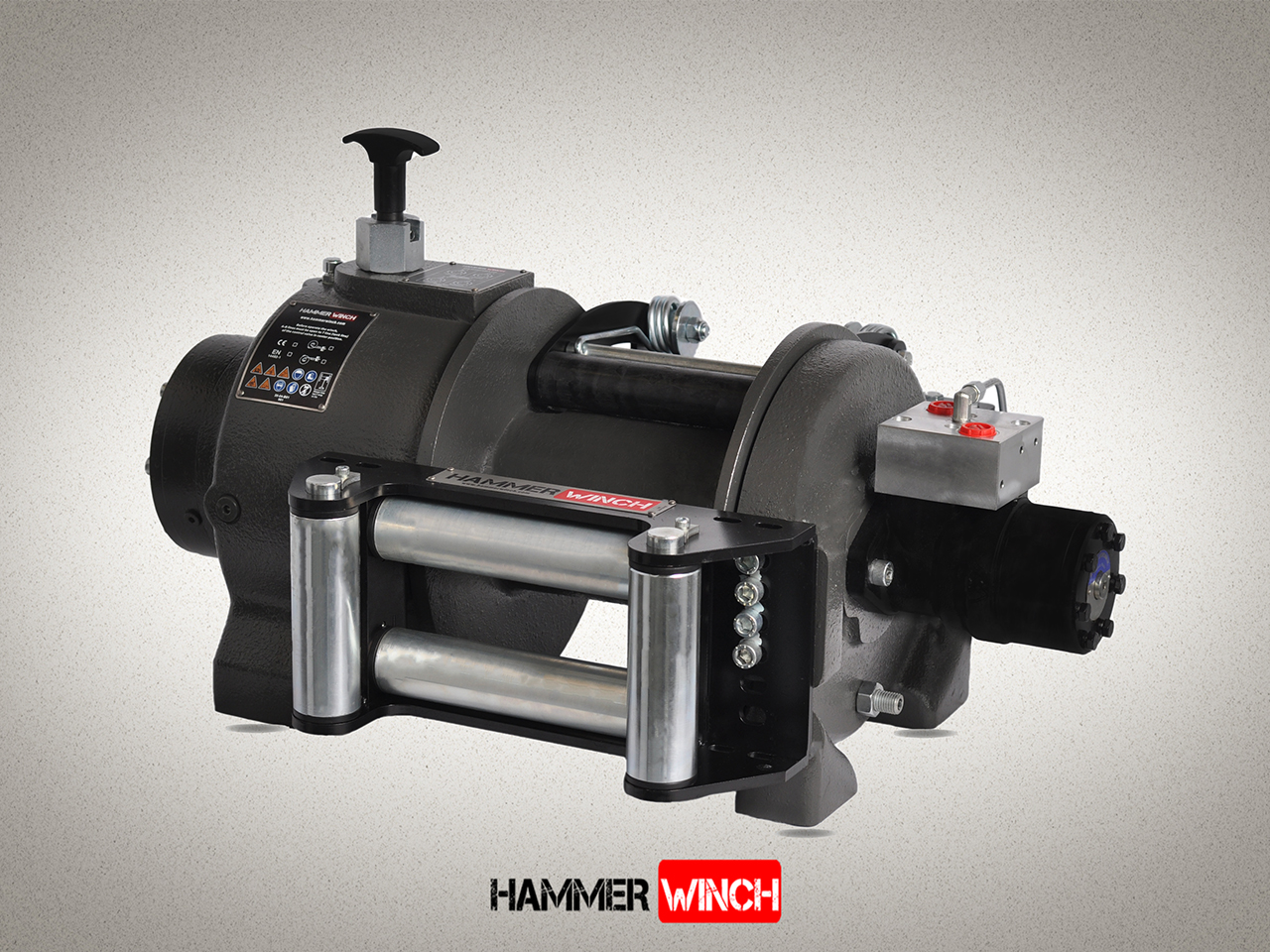

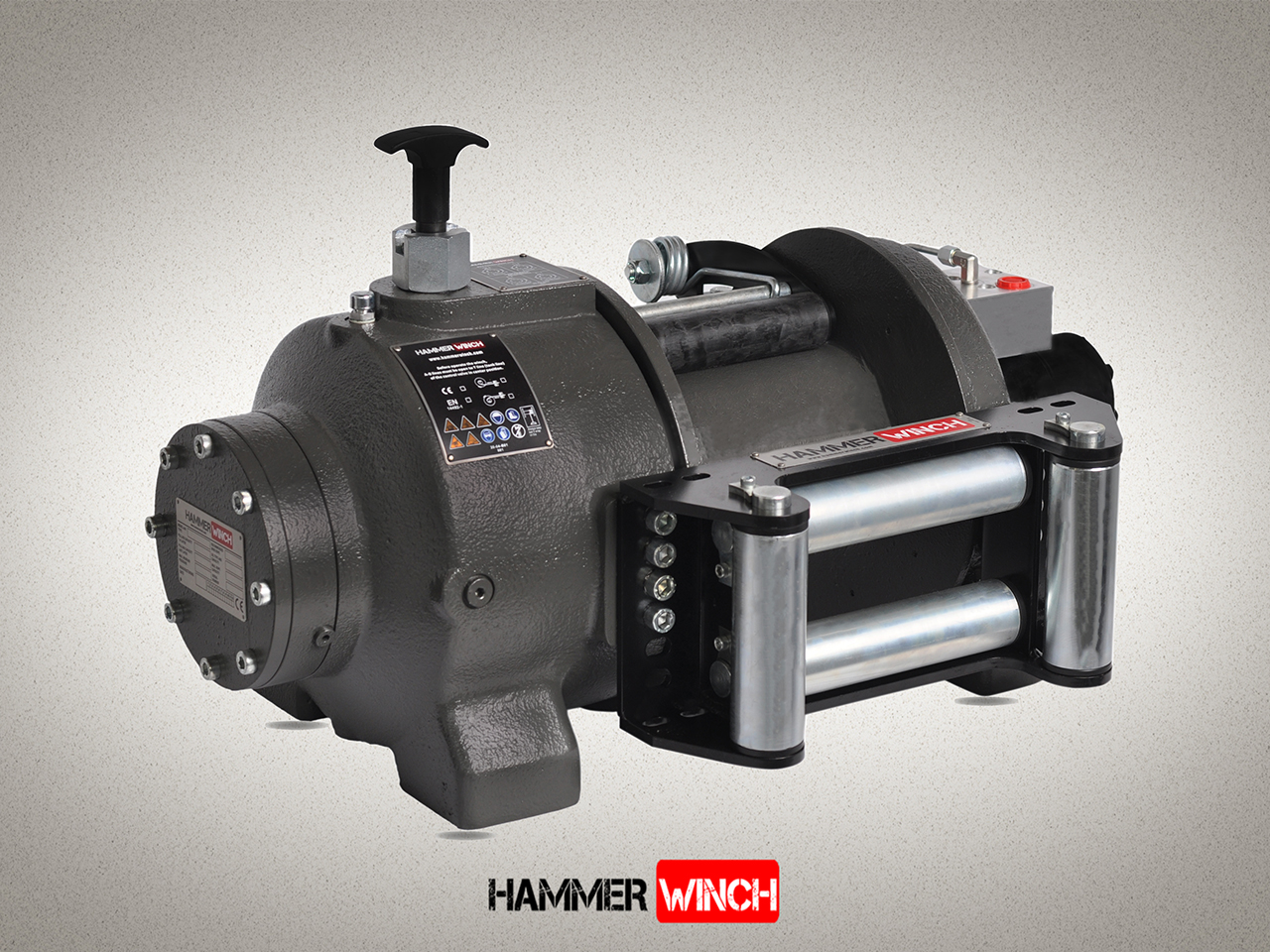

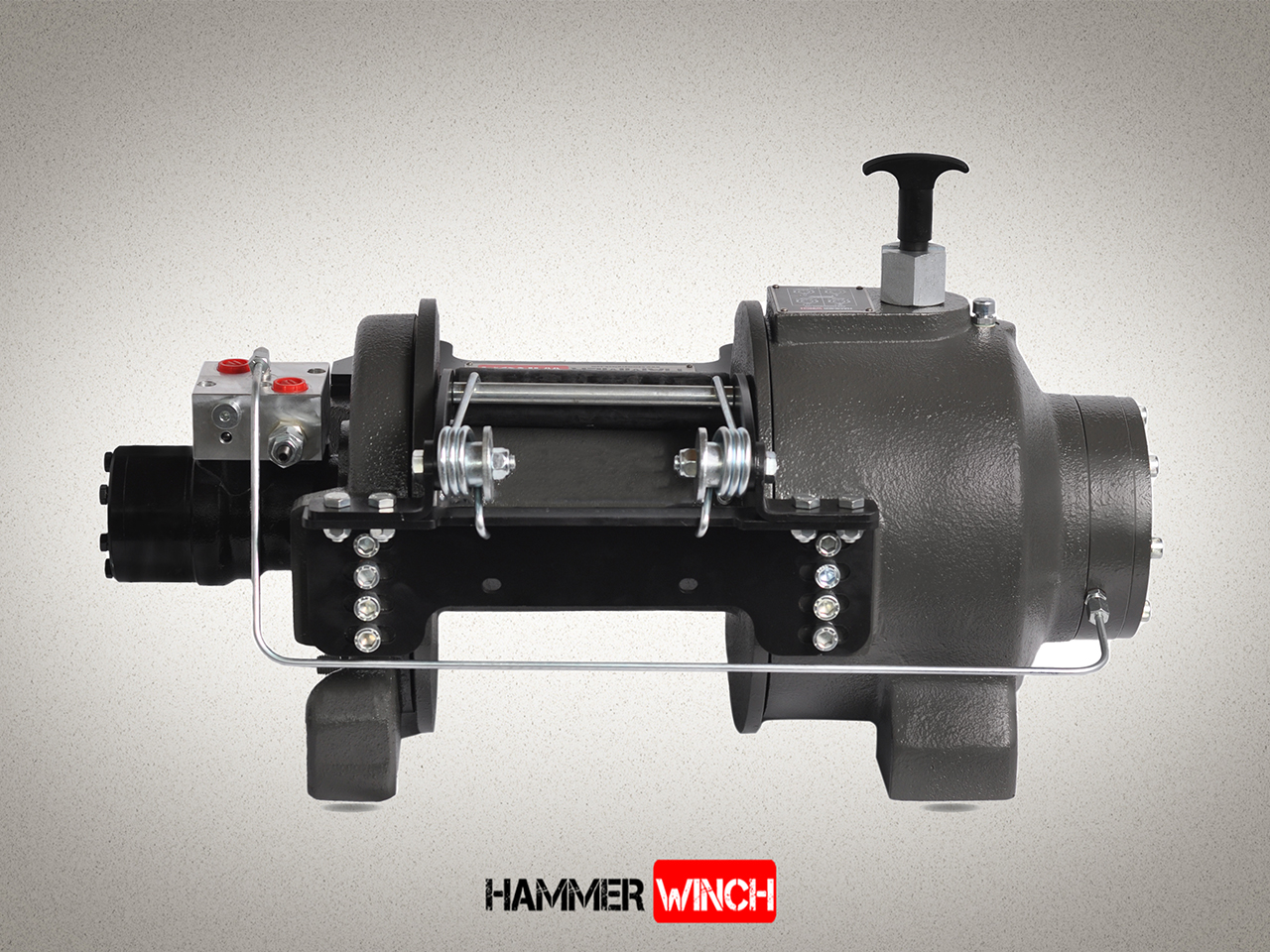

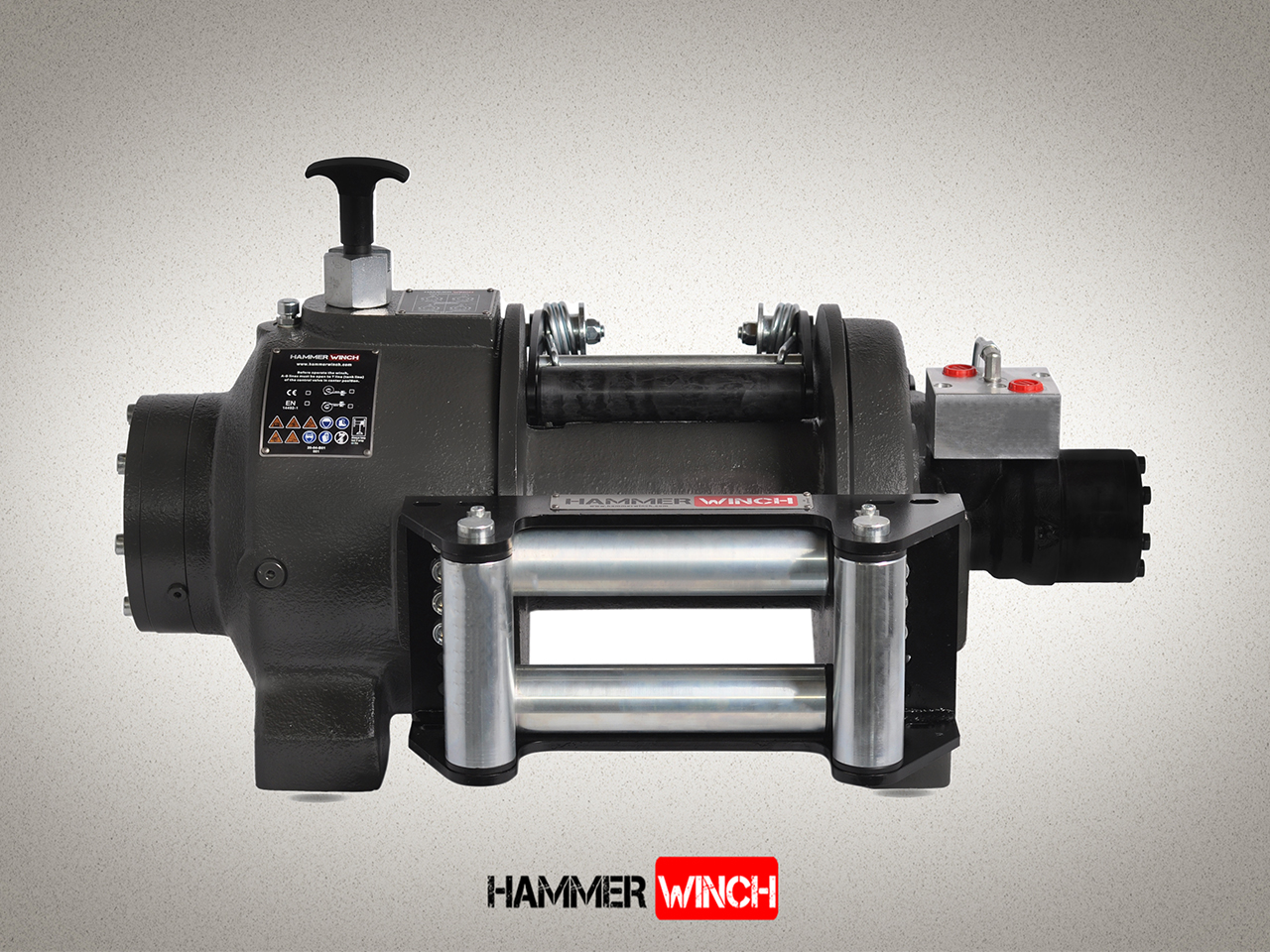

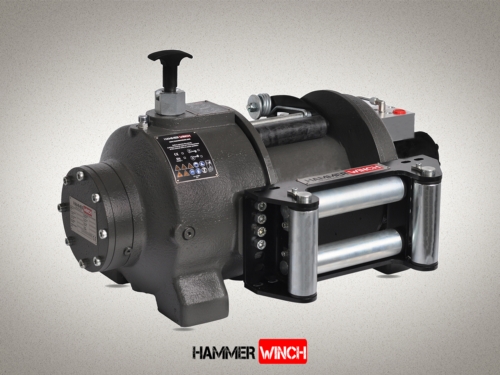

HMW 10.0 PHT - K Hydraulic Winch
10 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body.
- Lightweight and strong design.
- 100% Holding negative-acting hydraulic brake system.
- Standard pressure roller and roller fairlead.
- Easy assembly, high rope capacity and high torque hydromotor
- Standard manual rope unloading system
- CE Machinery Directive 2006/42/EC
- Meets SAE J706 rating
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 10000 kg (22040 Ibs) |
| Max. rope length (m/ft): | 33 m (108.2 ft) |
| Recommended wire rope (mm/in): | 16 mm (7/11") 1960Mpa |
| Hydromotor (cc/in³): | 160cc (10 in³) |
| Max. pump flow (L/min-g/min): | 60 L (15.8 g) |
| Gear ratio: | 28:1 |
| Oil types and capactiy: | 85 W 90 - 2 L |
| Max. working pressure (bar/psi): | 145 bar (2103 psi) |
| Winch (kg/Ibs): | 159 kg (350 Ibs) |
| Roller Fairlead (kg/lbs): | 18 kg (39,6 lbs) |
| Cable Tensioner (kg/Ibs): | 8 kg (17,6 lbs) |
HMW 10.0 PHT - K Manuel Clutch Shifter
HMW 10.0 PHT - K/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 10.0 PHT - K Hydraulic Winch
