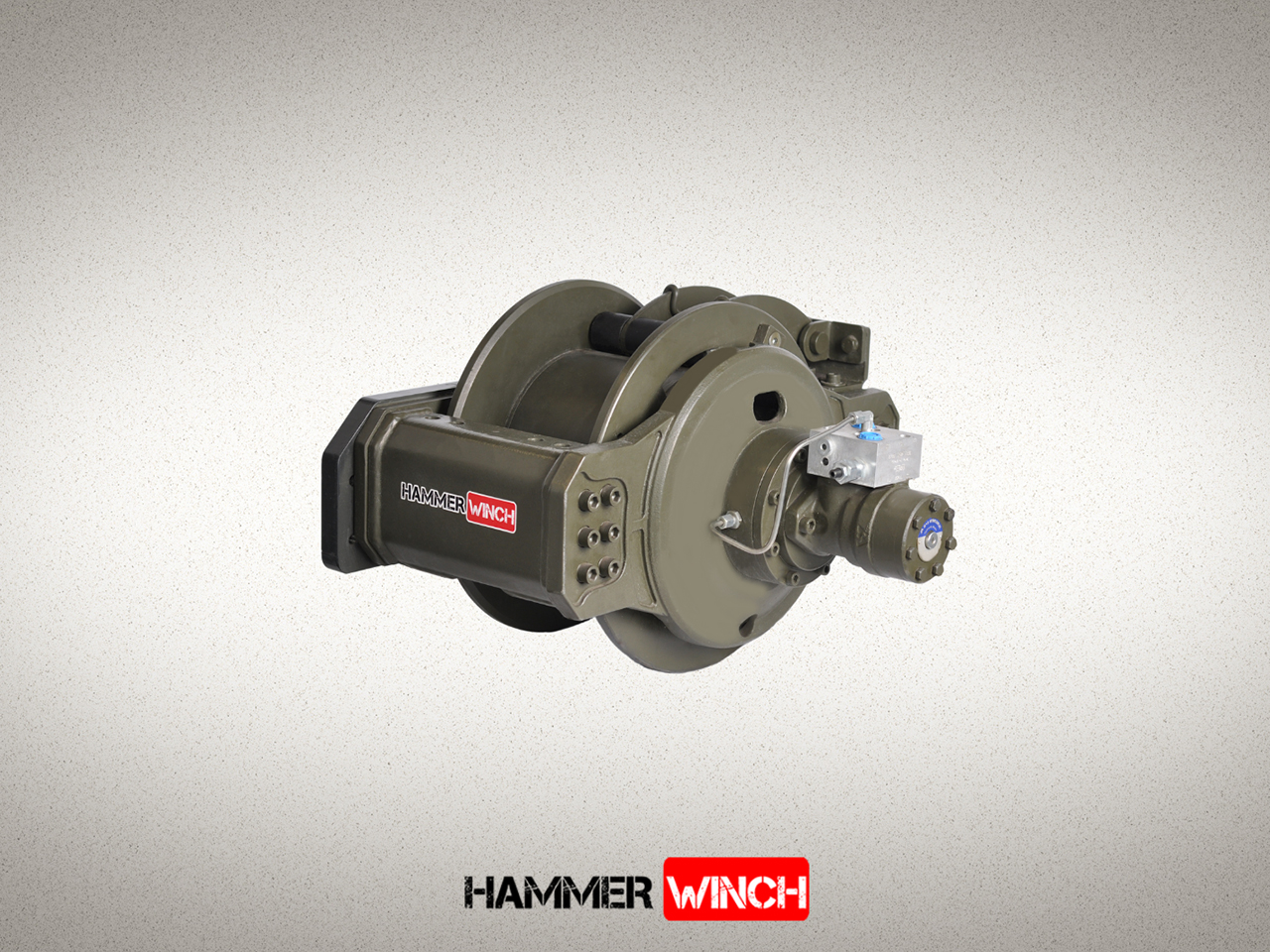

HMW 10.0 SDW Hydraulic Winch
10 Ton Capacity Hydraulic Winch
- Extra reinforced steel cast body.
- Lightweight and strong design, high rope capacity.
- Negative-acting hydraulic brake holding reinforced.
- Dynamics, strong hydraulic motor and high strength cast drum.
- EN 14492-1 : 2006 Power driven winches supported.
- CE Machinery Directive 2006/42/EC
Technical Specifications
| Max. pulling capacity (kg/Ibs): | 10000 kg (22040 Ibs) |
| Max. rope length (m/ft): | 62 m (203.3 ft) |
| Max. rope length for EN (m/ft): | 47.4 m (155.5 ft) |
| Recommended wire rope (mm/in): | 16 mm (7/11") 2160 Mpa |
| Hydromotor (cc/in³): | 160 cc (9.6 in³) |
| Max. pump flow (L/min-g/min): | 60 L/min (15.8 g/min) |
| Gear ratio: | 34.5:1 |
| Oil types and capactiy: | 85 W 90 - 2 L |
| Max. working pressure (bar/psi): | 190 bar (2755 psi) |
| Winch (kg/Ibs): | 198 kg (436.4 lbs) |
| Cable Tensioner (kg/Ibs): | 7 kg (15,4 lbs) |
HMW 10.0 SDW Manuel Clutch Shifter
HMW 10.0 SDW/P Air Clutch Shifter
For detailed information about Hydraulic Winch: HMW 10.0 SDW Hydraulic Winch
